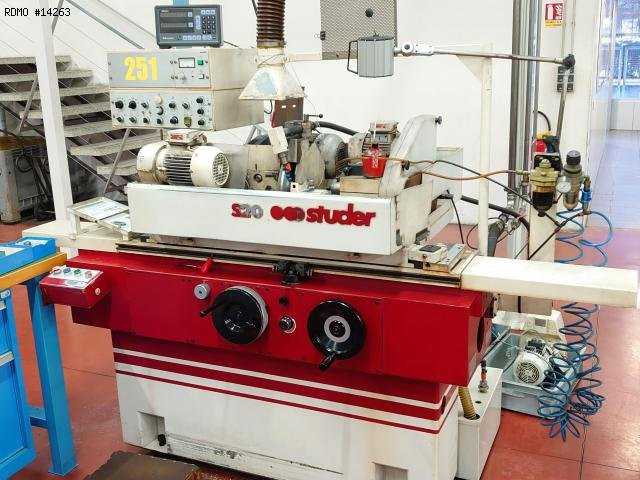

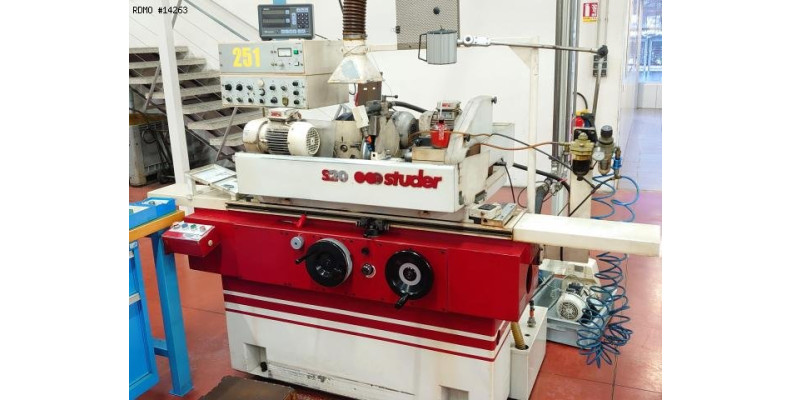

STUDER S 20-2

Name: Rettificatrice cilindrica STUDER S 20-2
Brand: STUDER
Availability: InStock

Rettifica / affilatura / lappatura / sbavatura / levigatura Rettificatrice cilindrica

14263

Specifiche tecniche per il download

Marca: STUDER

Modello: S 20-2

Anno: 1987

Nr Serie: 1036.54

14263

STUDER S 20-2

Rettifica / affilatura / lappatura / sbavatura / levigatura Rettificatrice cilindrica

Specifiche tecniche per il download

Marca: STUDER

Modello: S 20-2

Anno: 1987

Nr Serie: 1036.54

Richieda un prezzo

Caratteristiche

- centers height : 100 [mm]
- distance between centers : 650 [mm]
- length of internal grinding : 100 [mm]
- Ø of internal grinding : 3 to 40 [mm]
- maximal table orientation : 30 [°]

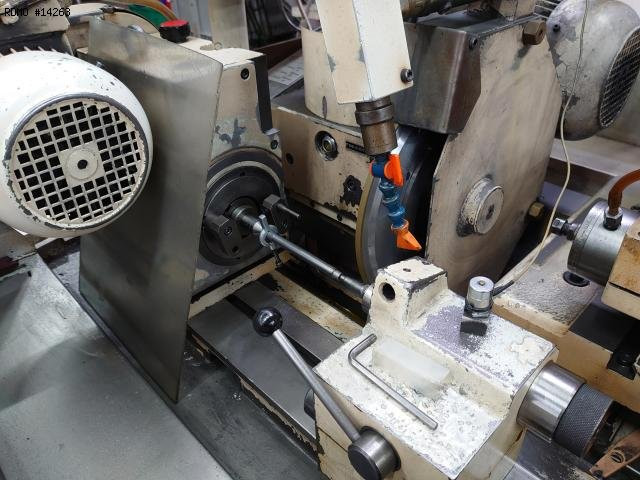

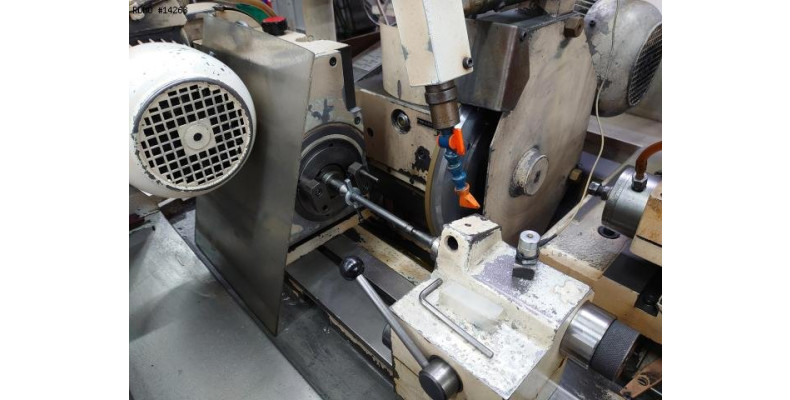

- workhead :
* spindle speed (variator): 60-1200 [Rpm]
* motor power : 0.5 [kW]
* interior cone : morse 4/2
- wheels sizes : 350 x 30 x 127 [mm]

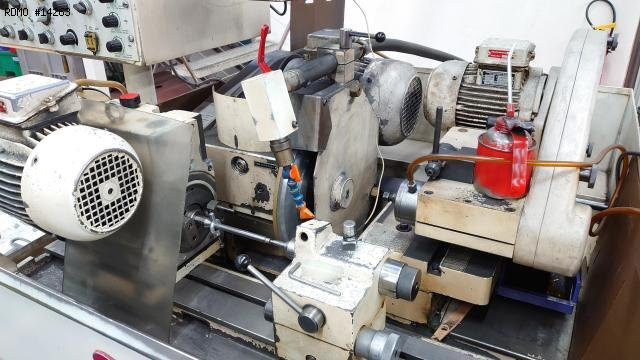

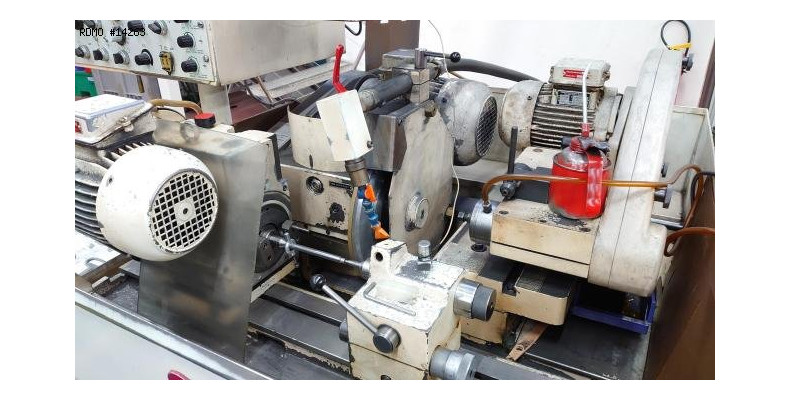

- wheelhead :
* power : 3 [kW]
* orientation : 15/30 [°]
- maxi part weight : 20 [kg]
- maxi power required : 5 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3000 x 1400 [mm]
- Machine height : 1600 [mm]
- Machine weight : 1900 [kg]

Attrezzatura

- complete internal grinding attachment : 68.000 [rpm]
- 1 cooling device
- 1 counter headstock with fine adjustment
- 1 reversible and adjustable trueing device
- 1 directional diamond holder

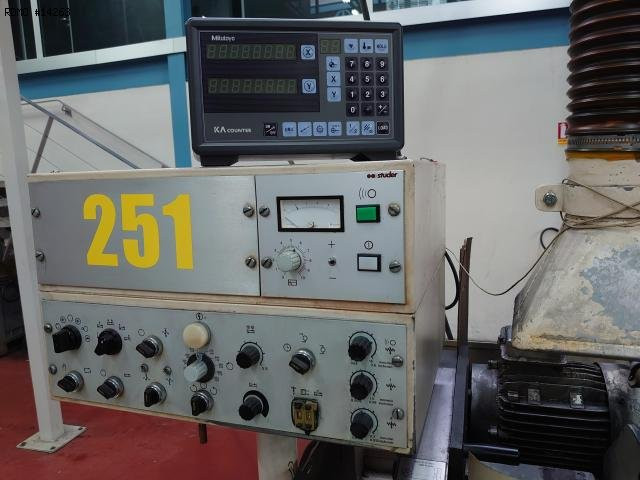

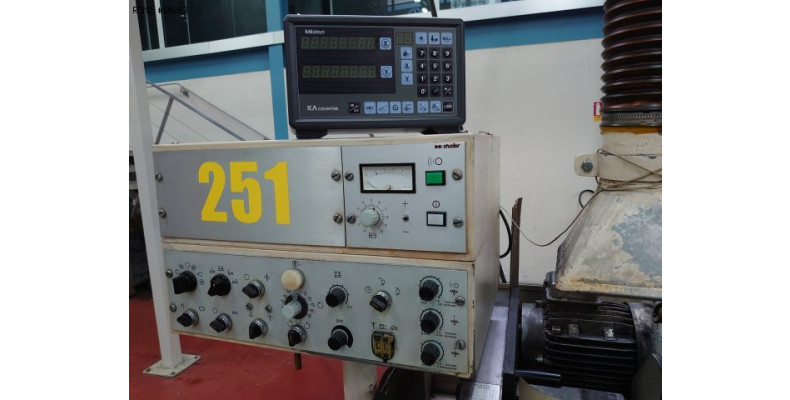

- 2 axis X, Y digital display
