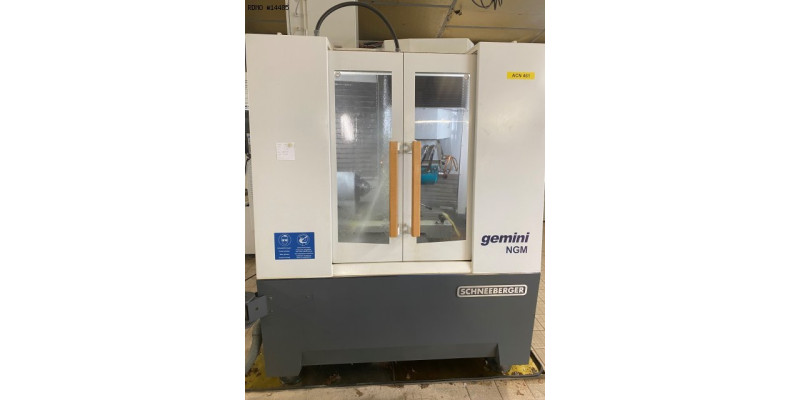

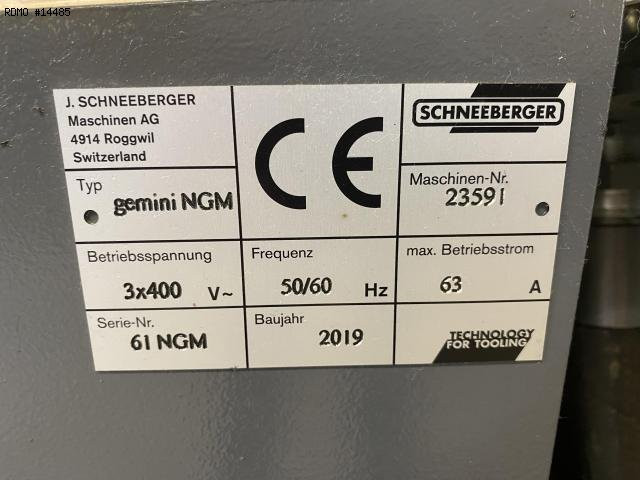

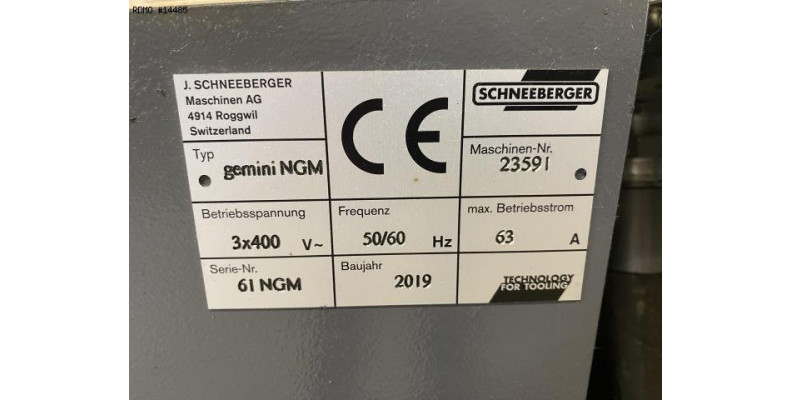

Marca: SCHNEEBERGER
Modello: GEMINI NGM
Anno: 2019
Nr Serie: 23591
Marca: SCHNEEBERGER
Modello: GEMINI NGM
Anno: 2019
Nr Serie: 23591

Caratteristiche & Attrezzatura

Caratteristiche
Axes :
X: 500 mm longitudinal slide
Y : 400 mm cross slide
Z : 380 mm vertical column

A : ISO 50 tool holder, resolution 0.0001°.

C : 380° grinding head rotation, resolution 0.0001°.

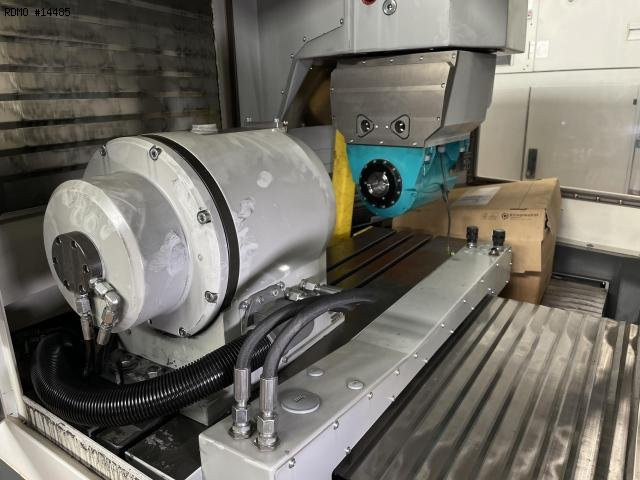

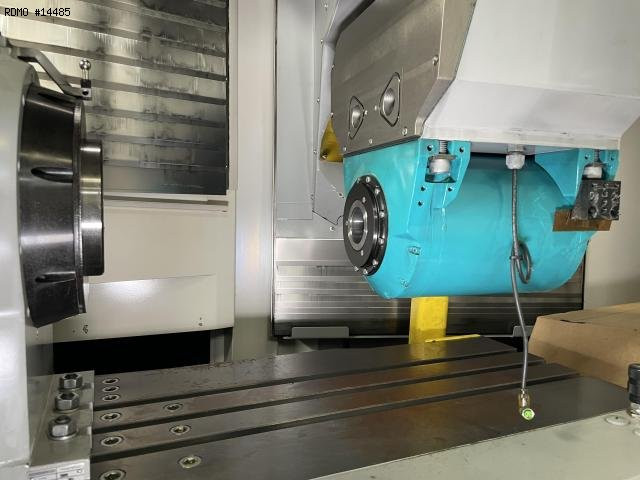

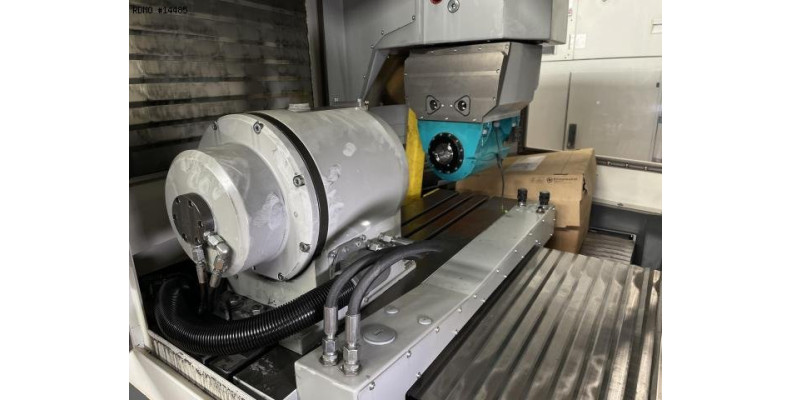

Grinding head :

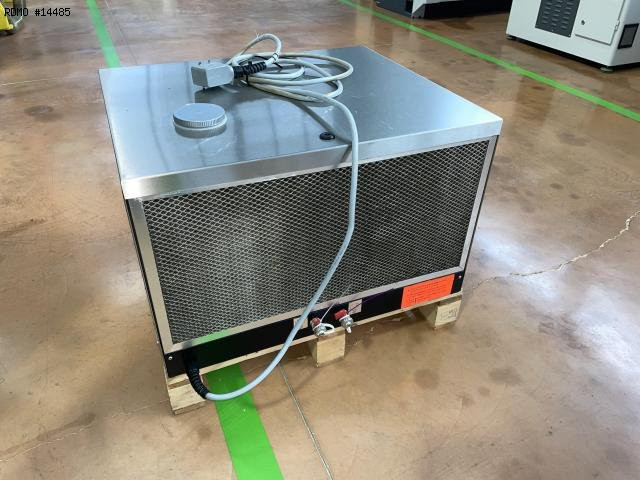

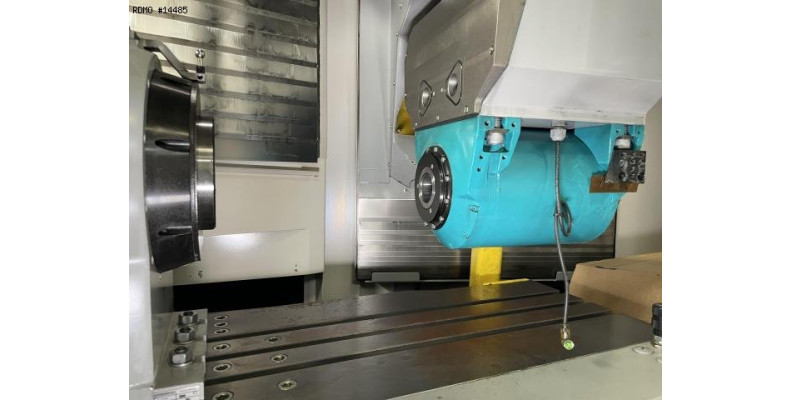

Electrospindle grinding head, HSK50 with 10Kw liquid cooler

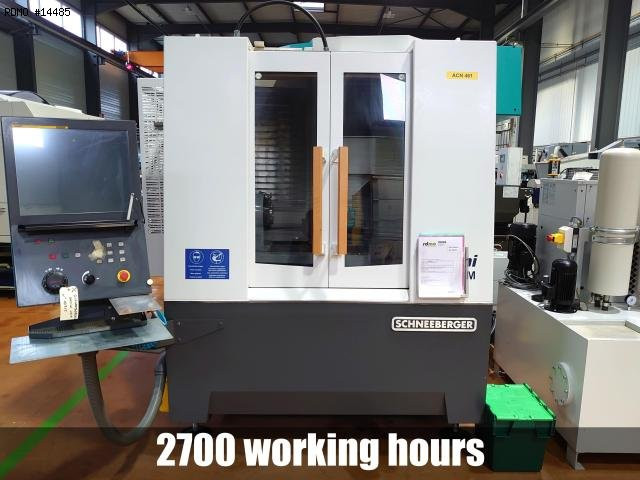

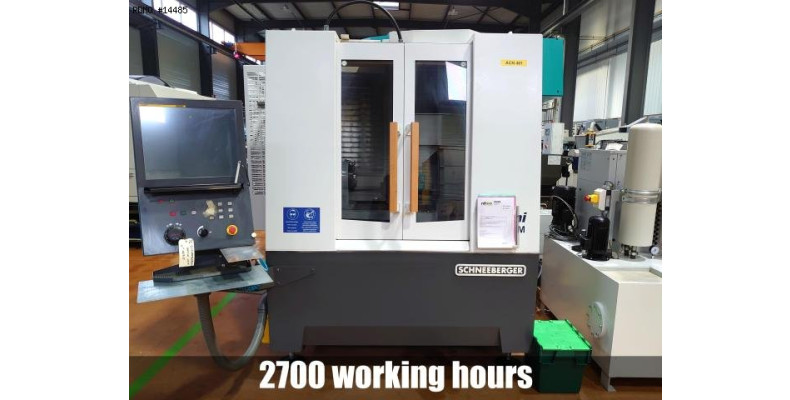

Operating hours : 2700

Weight :
7,000 kg

Dimensions : 2090 x 2300 x 2050 (height)
Attrezzatura

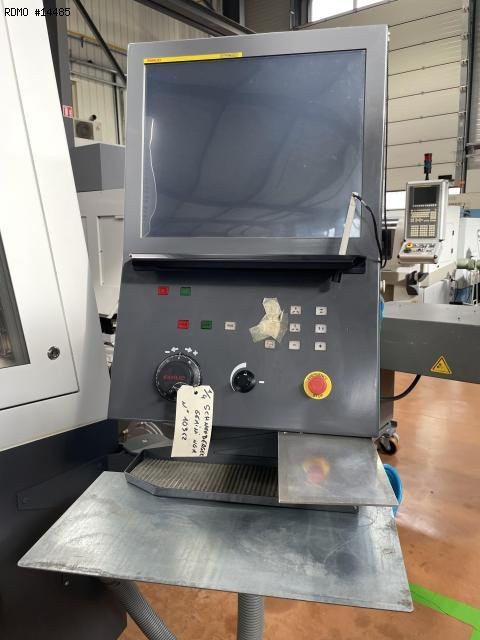

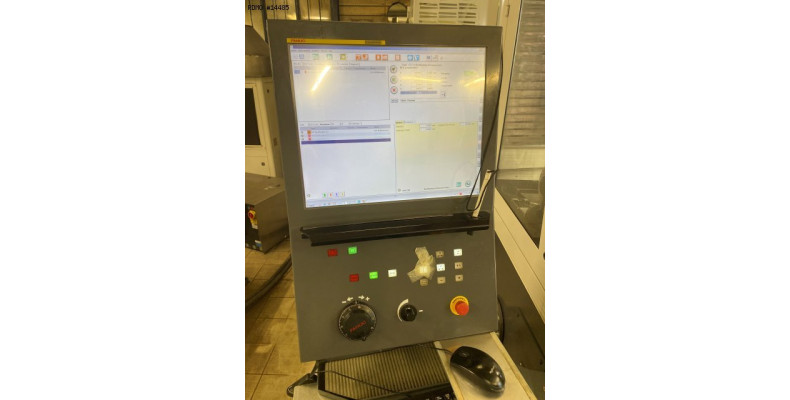

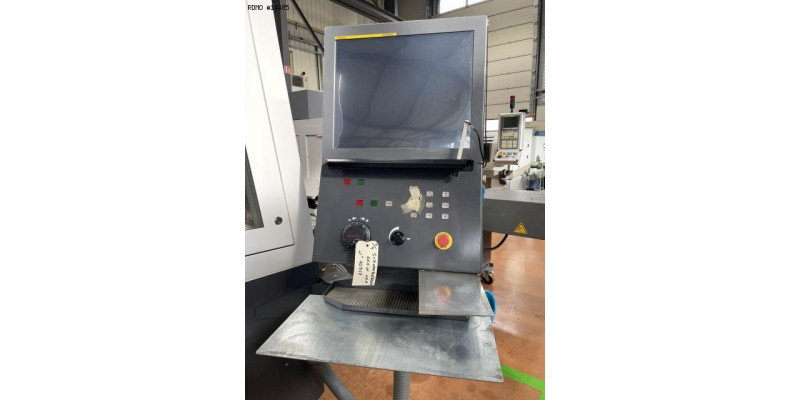

Control :

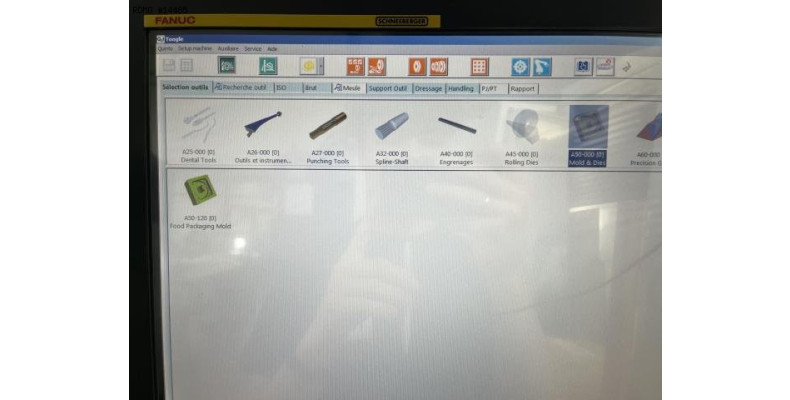

FANUC 31iB5, 5 controlled axes

19' TFT colour display with keyboard and touch screen, USB 3.0
ZENON coordinate probe

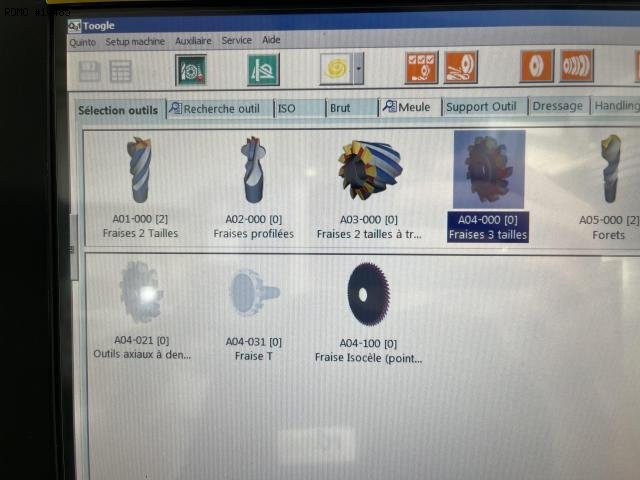

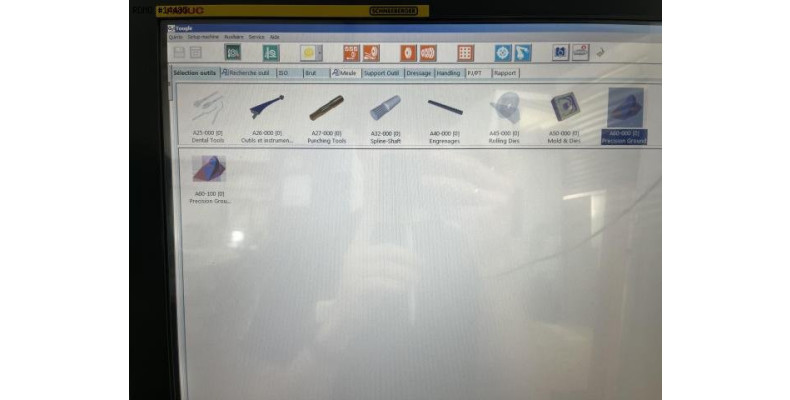

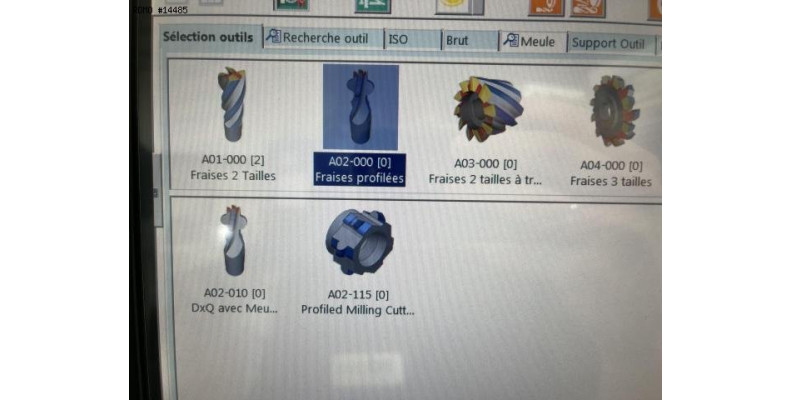

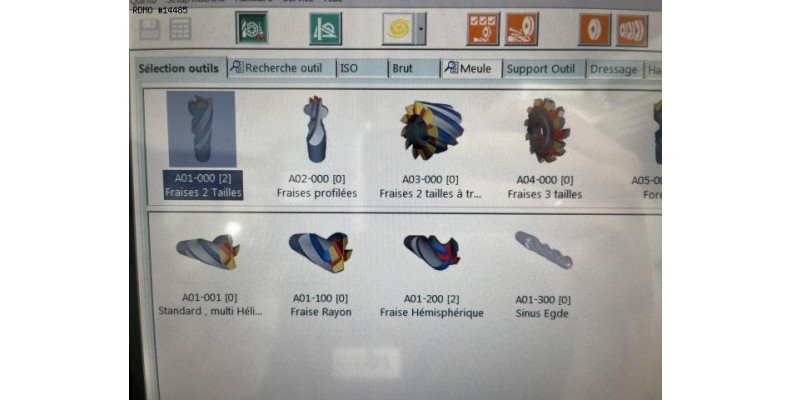

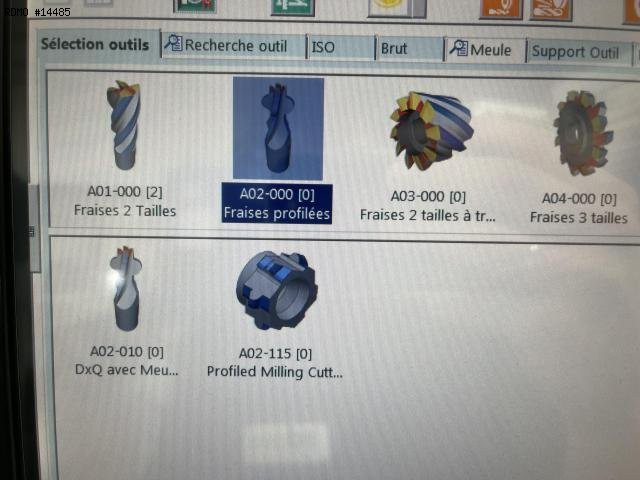

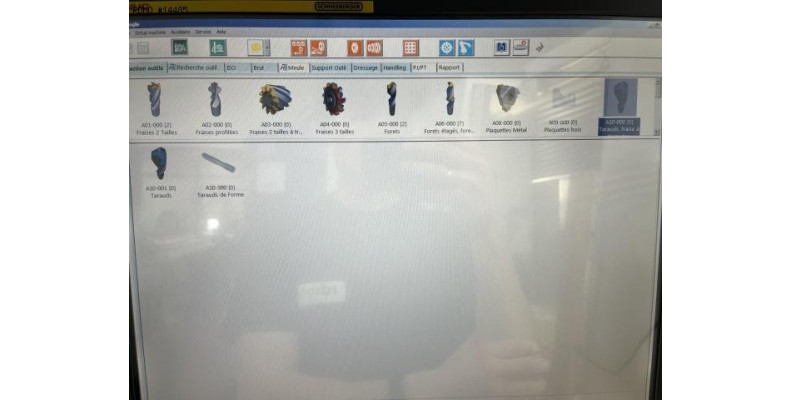

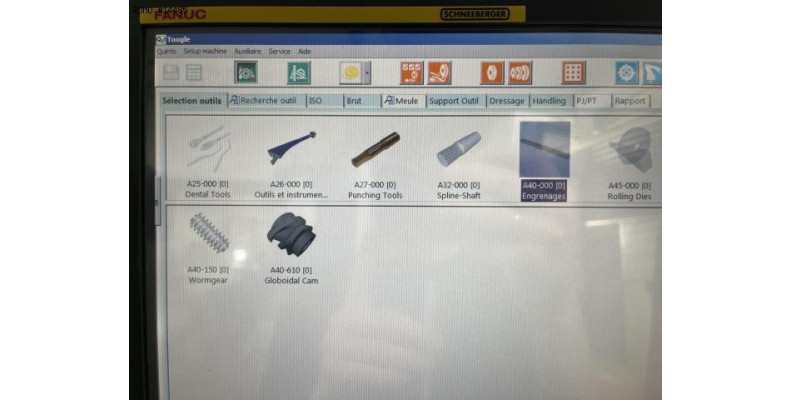

EasyProfile

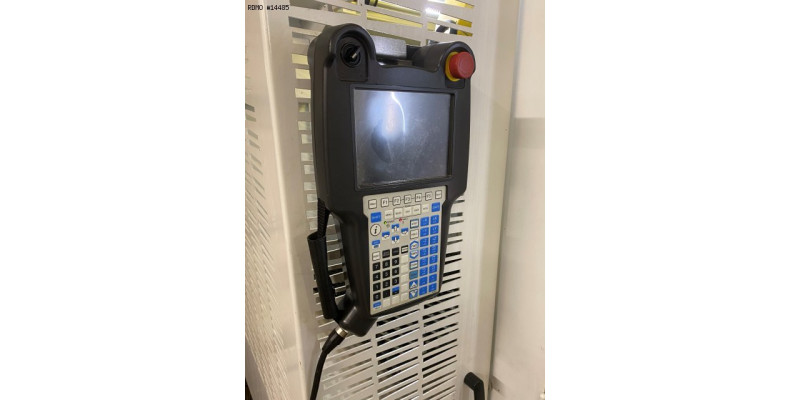

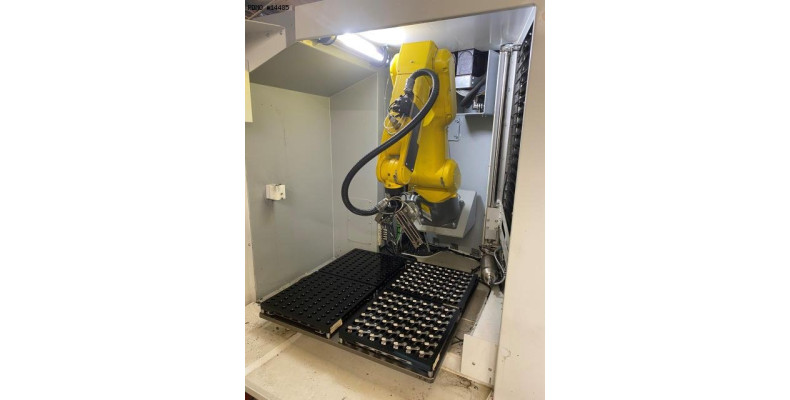

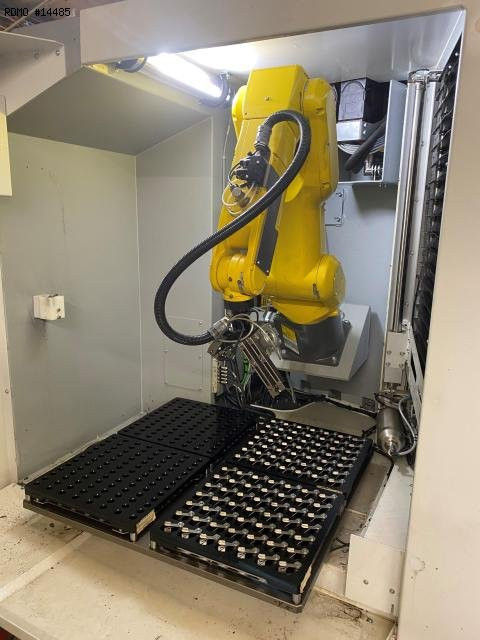

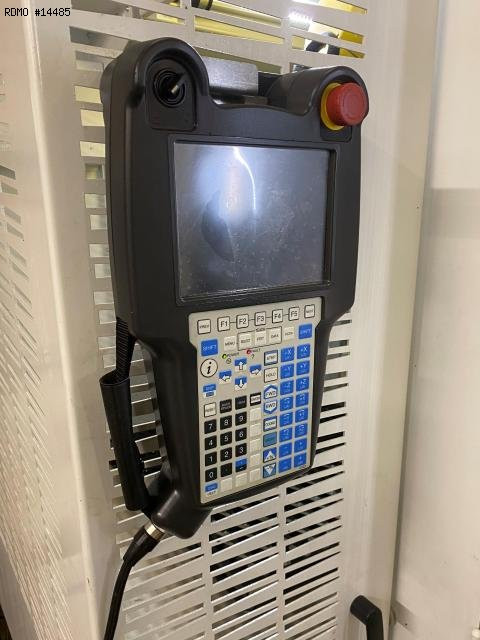

Fanuc robot loader, 4 pallets

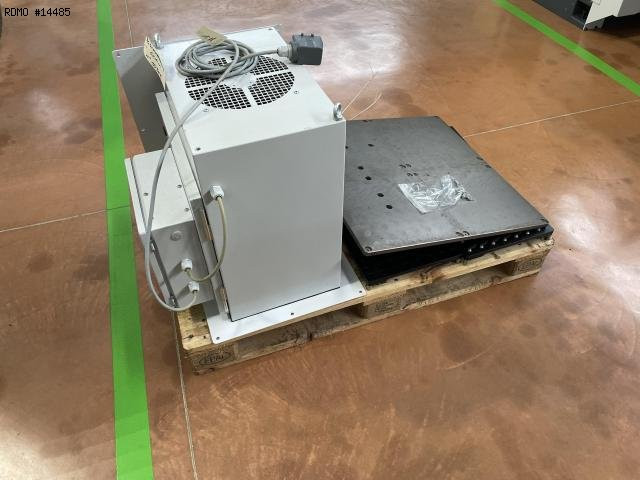

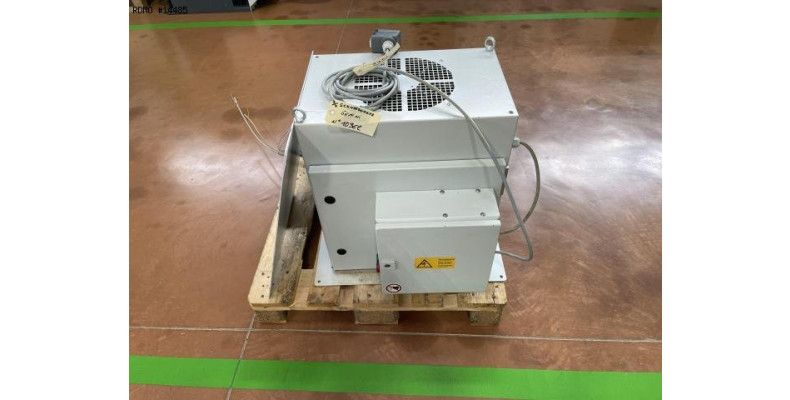

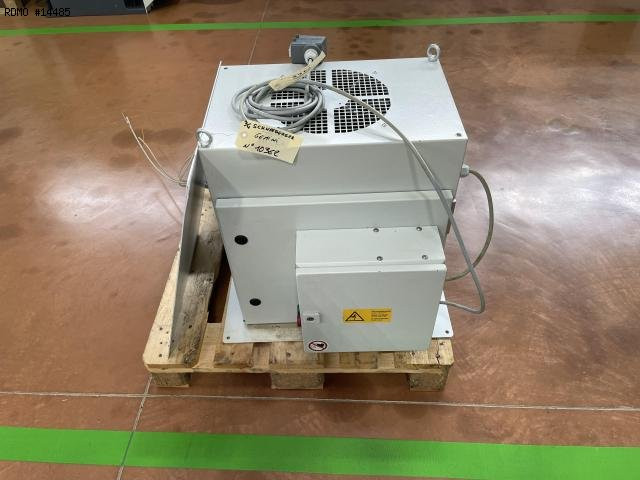

Active cooling for control cabin
network connection

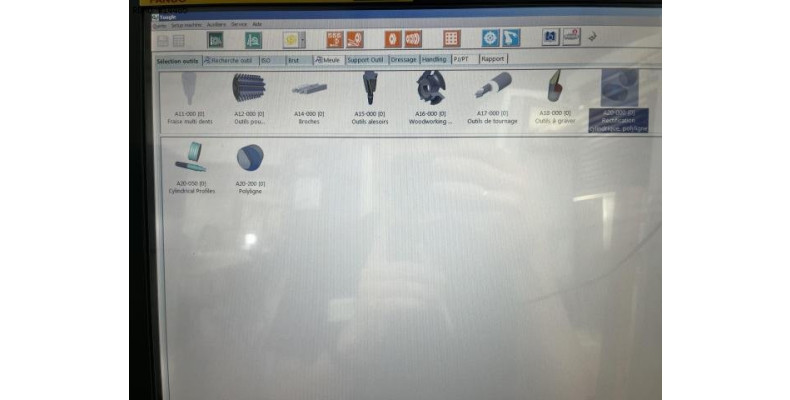

Remote diagnostics software
Hydraulic clamping
Hydraulic steady rest
Adapter for 60° V-shaped steady rest (d=5mm)
Automatic clamp W25
Wheel flange HSK50 Ø 20 mm L 85 mm and one in L 45 mm

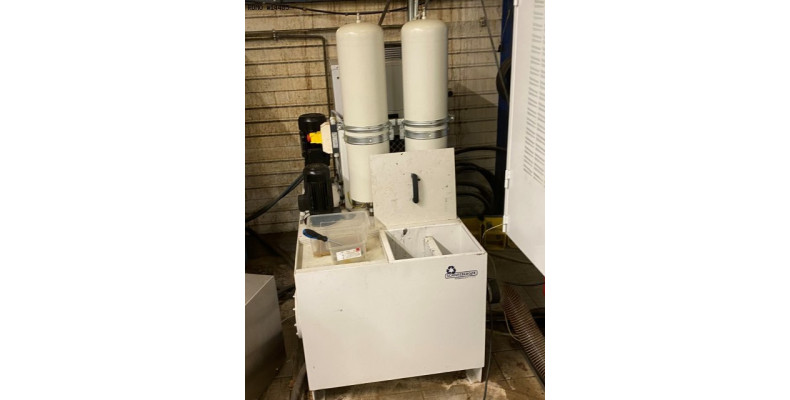

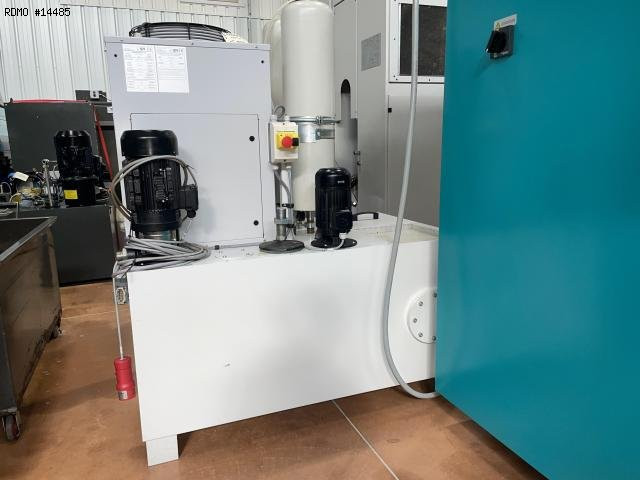

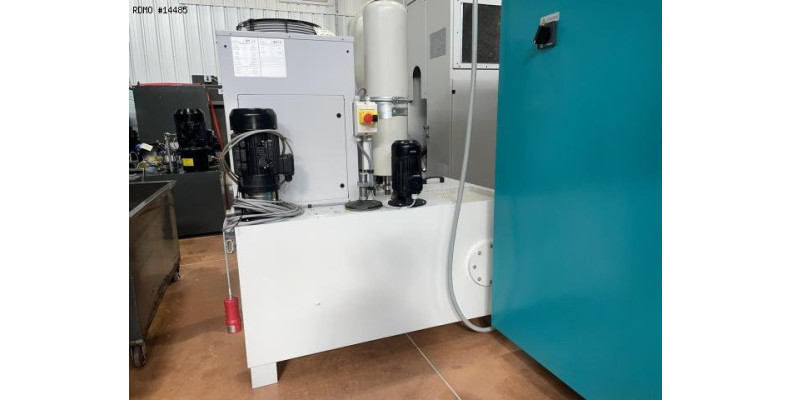

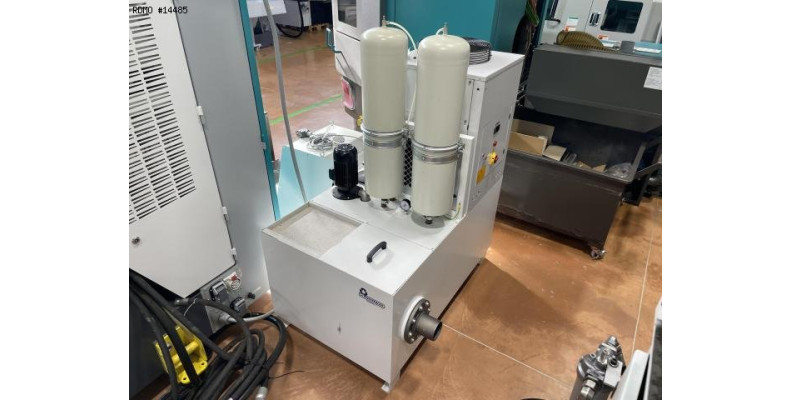

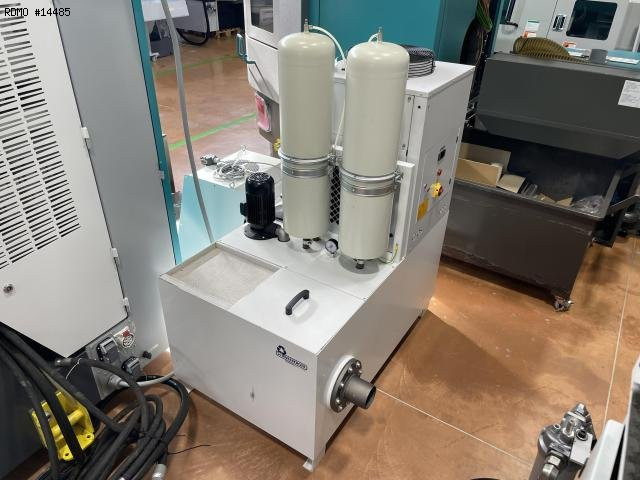

400-litre cartridge filtration system (1200 x 800 mm)

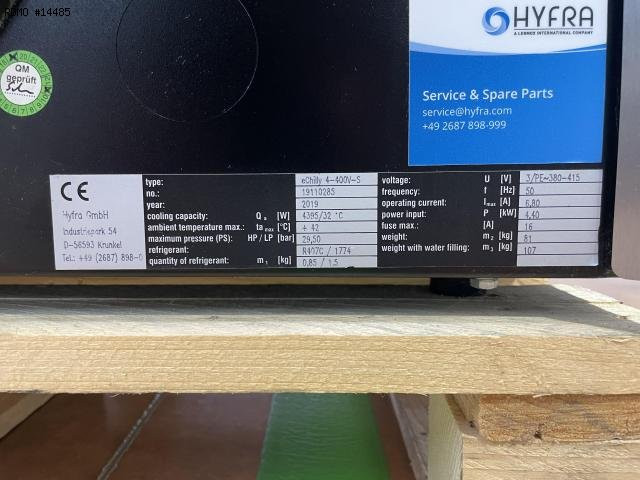

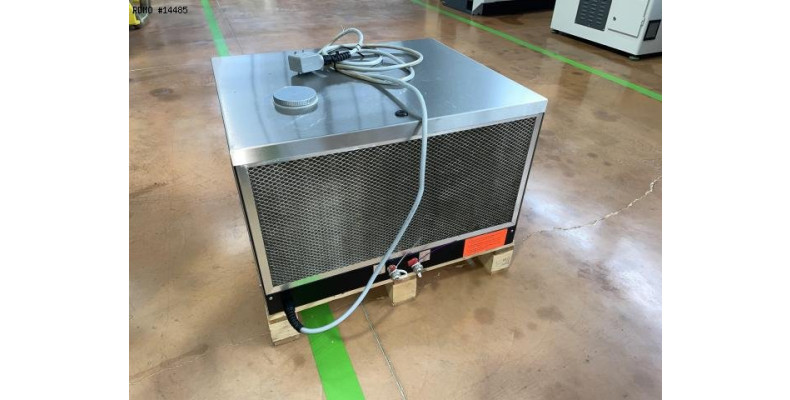

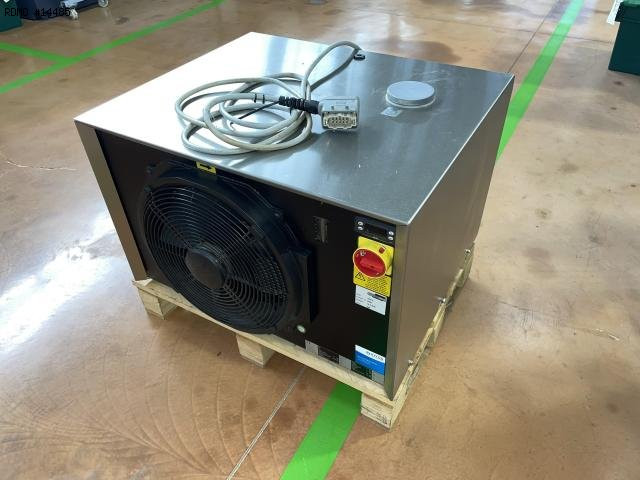

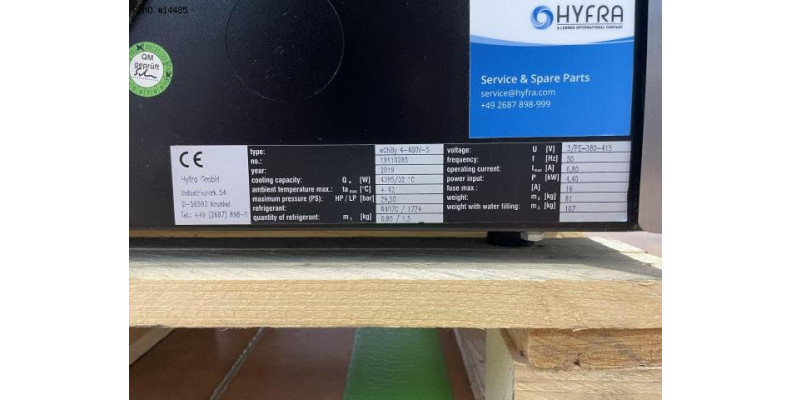

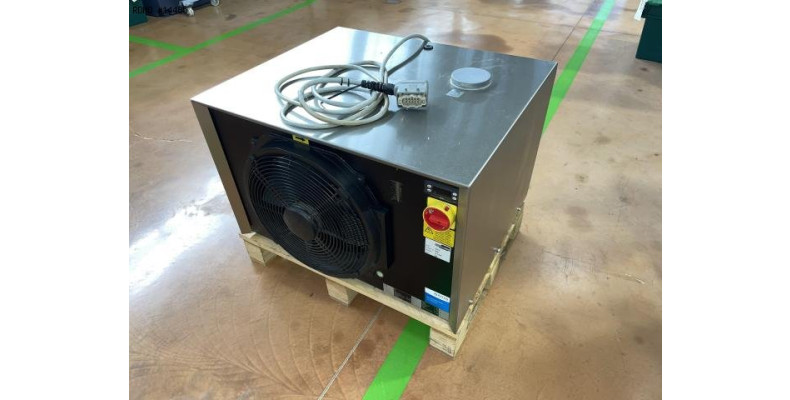

6 Kw temperature control
HP cooling pump
CO2 10Kg fire protection system
* NB: no guarantee of operation. To be checked by a qualified body of the buyer.
