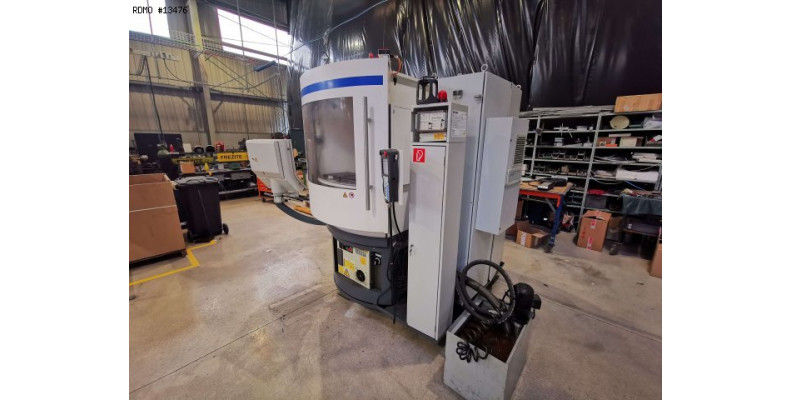

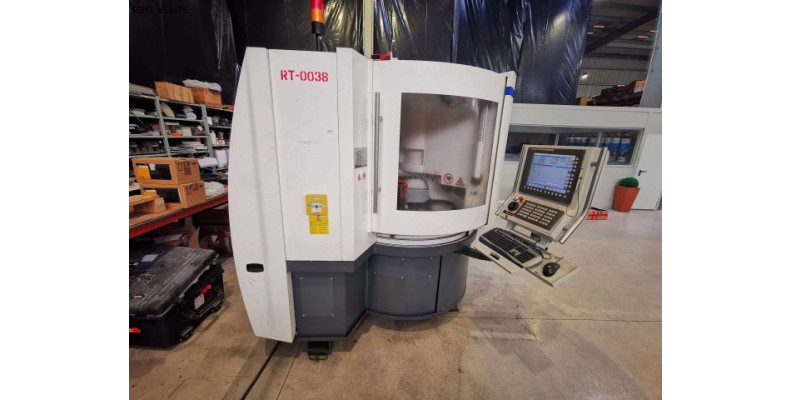

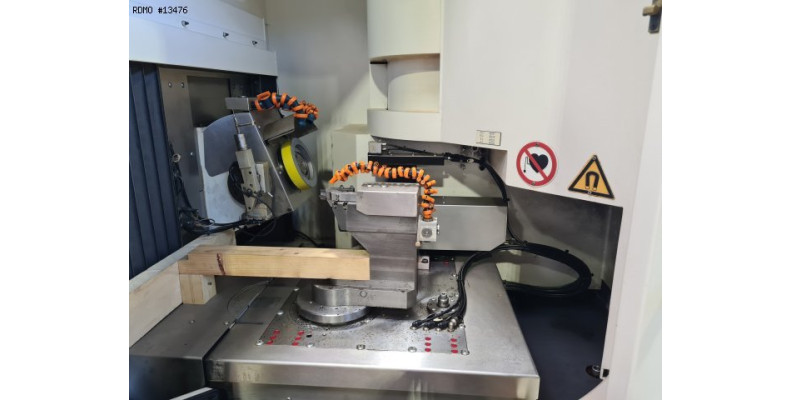

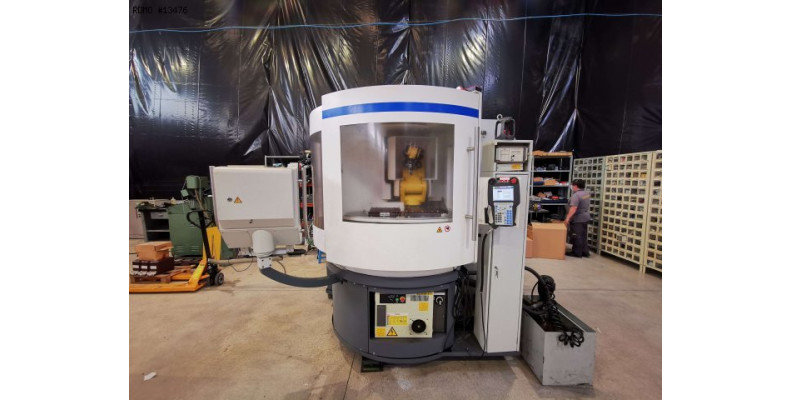

Ewag Compact line 5 assi

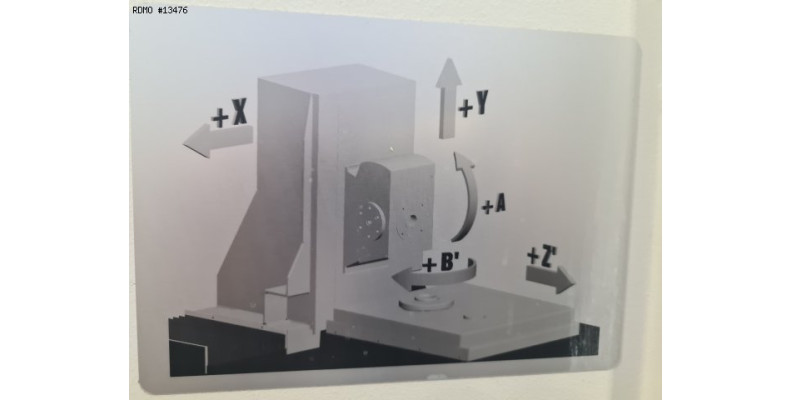

- Max. grinding wheel diameter. : 250 [mm]
- X transversal axis stroke : 450 [mm]
- Axis X quick feed speed : 15 [m/min]
- Axis X resolution : 0.0001 [°]
- Vertical axis Y stroke : 180 [mm]
- Axis Y quick feed speeds : 10 [m/min]
- Axis Y resolution : 0.0001 [°]
- Axis Z stroke : 150 [mm]
- Axis Z quick feed speeds : 10 [m/min]
- Axis Z resolution : 0.0001 [°]
- Swiveling axis B stroke : 360 [°]
- Axis B quick feed speeds : 18.000 [°/min]
- Axis B resolution : 0.0001°
- Swiveling axis A stroke : -15 / +25 [°]
- Axis A quick feed speeds : 2.000 [°/min]
- Axis A resolution : 0.0001°
SPINDLE
- Spindle power : 5.5 [KW]
- Spindle speed : 7000 [Rpm]
- Attachment taper : HSK 50
FLOOR SPACE
- Floor dimensions : 2.330 x 3.600 [mm]
- Machine height : 3.000 [mm]
- Machine weight : 3.700 [kg]
MACHINE HOURS
- Work hours : 55.702 [h]

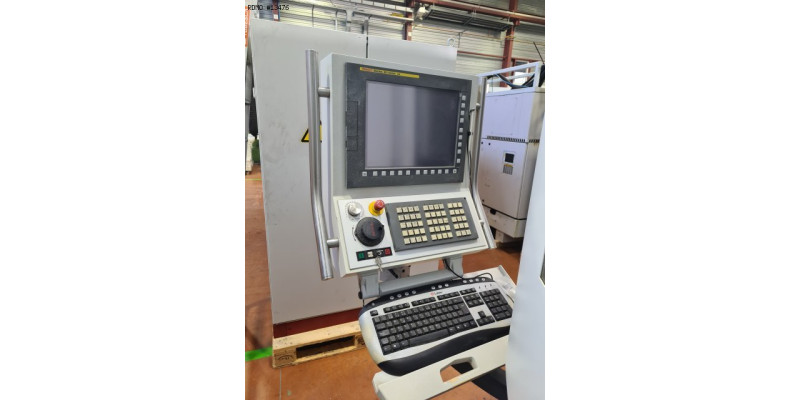

- CNC Control Fanuc 310i-A5
- Status lamp 3 colours

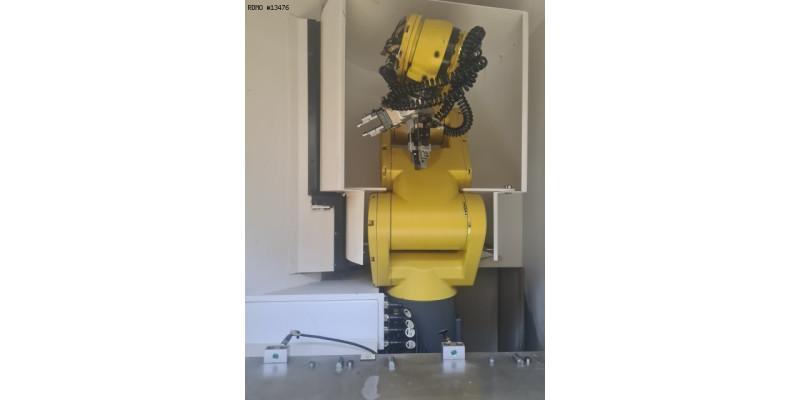

- Loading robot
- Sprinkler tank
- Fire fighting system
