Caratteristiche

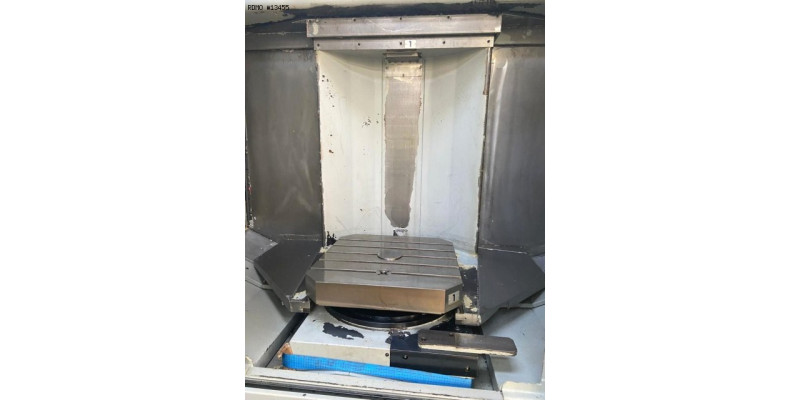

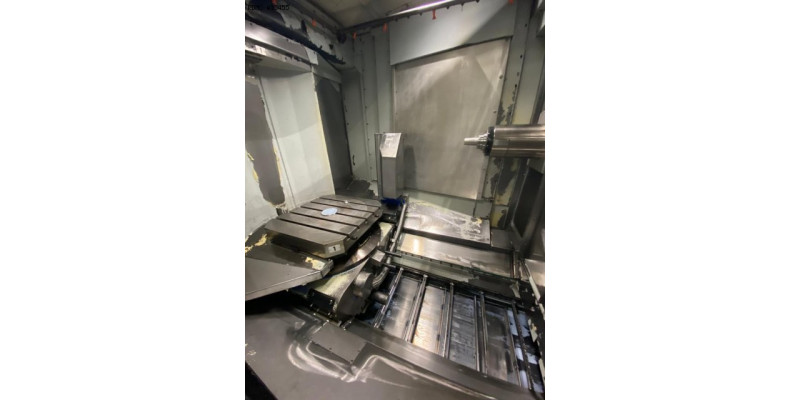

- Number of axes : 4 MILLING SPINDLE - Tool holder type : HSK 100 - Spindle power : 50/63 [kW] - Spindle speeds : 20 - 8.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 1.000 x 850 x 850 [mm] - Rapid traverses rates (X/Y/Z) : 50 [m/min] - Cutting feed rates (X/Y/Z) : 20 [m/min] TOOL CHANGER - Tool magazine capacity : 110 PALLET CHANGER - Pallet exchange time : 15 [sec] - Pallet size : 630 x 630 [mm] - Maximum workpiece diameter : 1.100 [mm] - Maximum workpiece height : 950 [mm] - Maximum weight upon pallet : 1000 [kg] - Distance table / spindle axis (min./max.) : 80 - 930 [mm] - Distance table center / spindle nose (min./max.) : 140 - 990 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 145 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 7.030 x 3.350 [mm] - Machine height : 3.390 [mm] - Machine weight : 28.600 [kg]
Attrezzatura

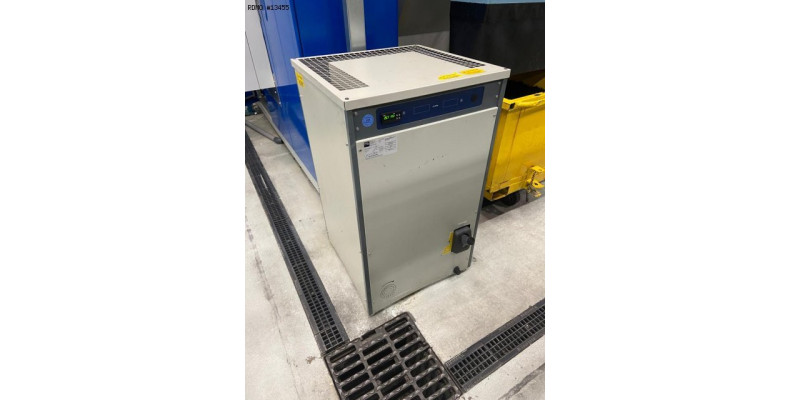

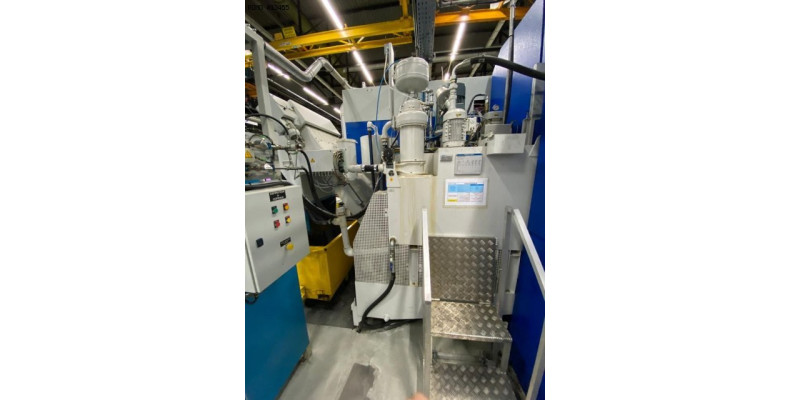

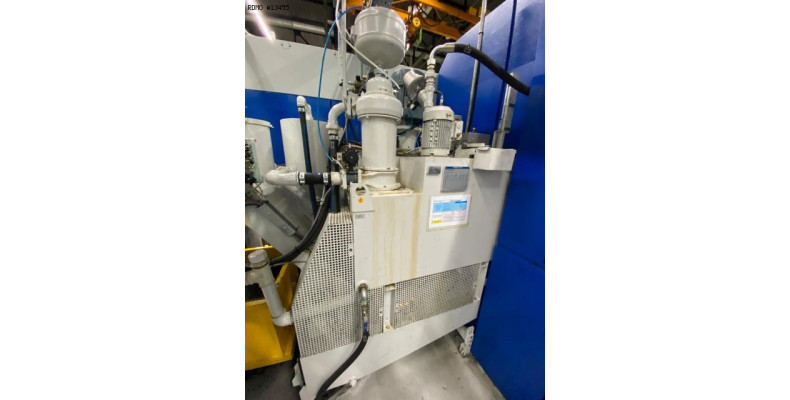

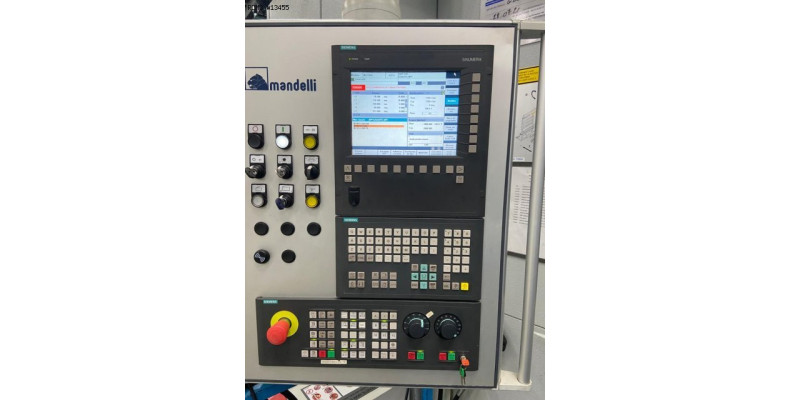

- CNC : SIEMENS 840D - Coolant tank : 1.100 [l] * with high-pressure pump : 25 [bars] * Coolant through spindle - Chips conveyor : KNOLL - Oil mist extractor - Spindle cooling unit
