14022

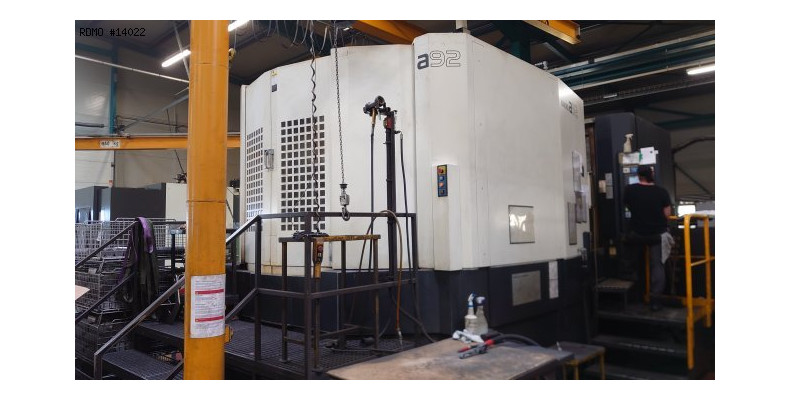

Marca: MAKINO
Modello: A 92
Anno: 2008
Nr Serie: 80.4429.0012
14022
Marca: MAKINO
Modello: A 92
Anno: 2008
Nr Serie: 80.4429.0012

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 4

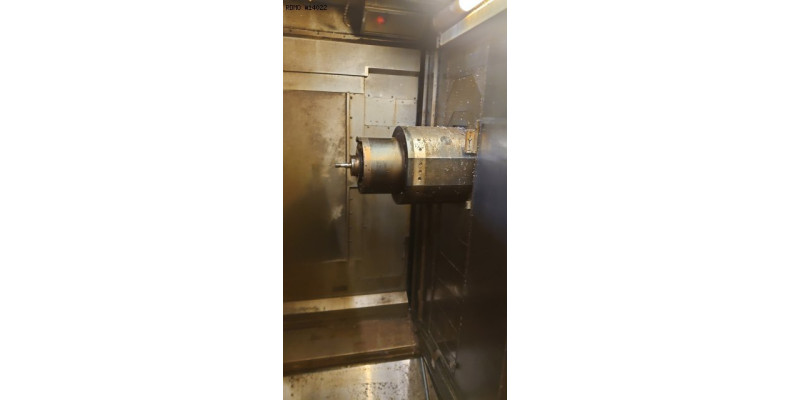

MILLING SPINDLE
- Tool holder type : HSK100
- Spindle speeds : 10.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1520 / 1250 / 1350 [mm]
- Rapid traverses rates (X/Y/Z) : 50.000 [mm/min]
B ROTARY AXIS
- Indexing precision : 1 [°]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 60

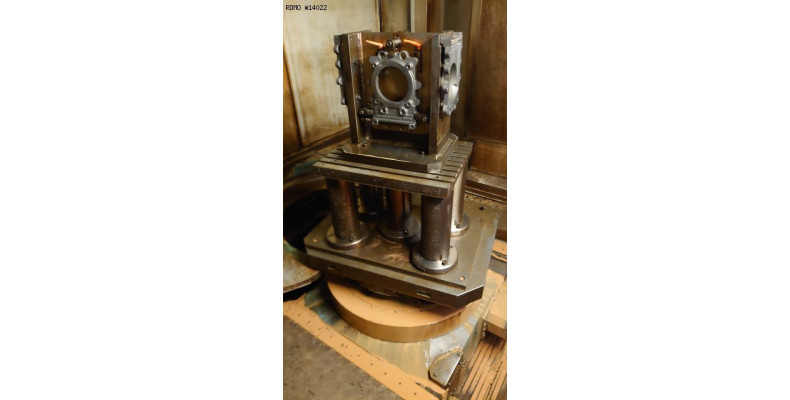

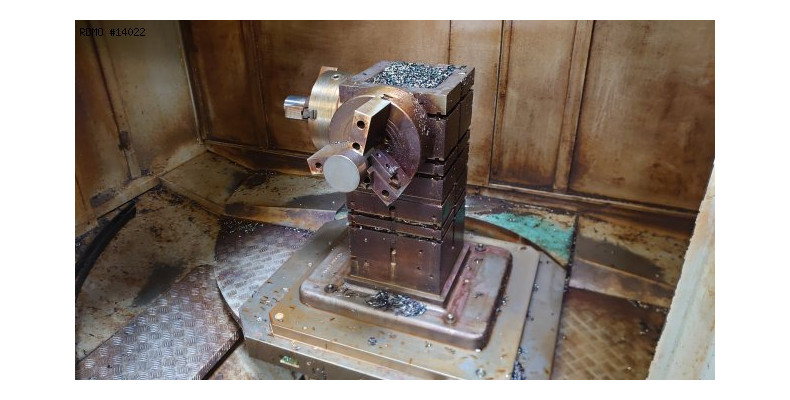

PALLET CHANGER
- Pallet size : 800 x 1000 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 2000 [kg]
- Maximum workpiece diameter : 1500 x 1500 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 5.000 x 3.450 [mm]
- Machine height : 3.380 [mm]
MACHINE HOURS
- Number of hours under power : 69.356 [h]
- Number of working hours : 29.595 [h]
Attrezzatura

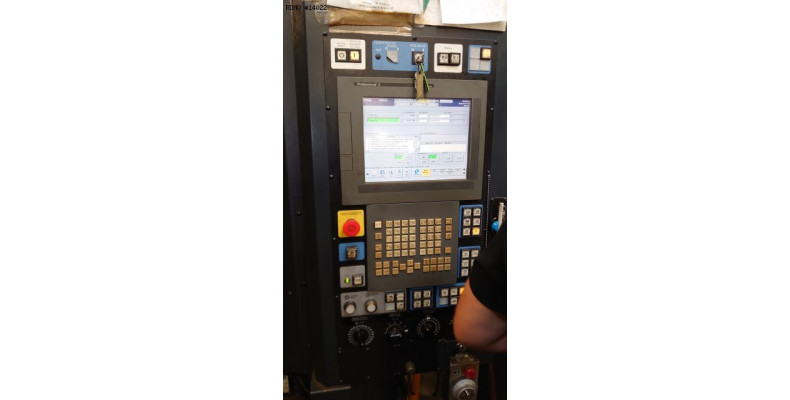

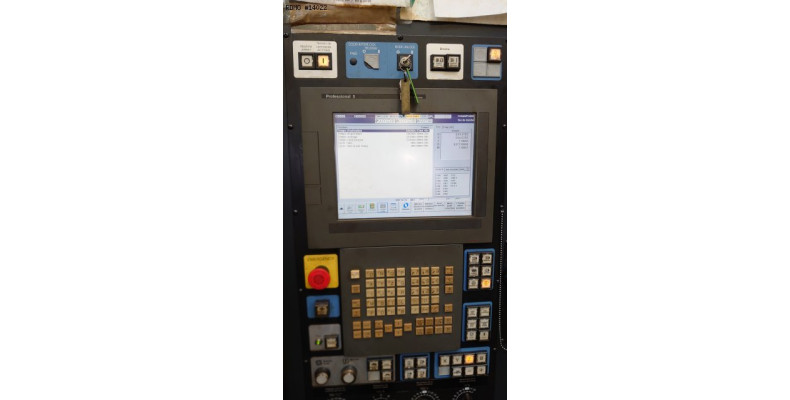

- CNC : MAKINO Professional 5
- 3 colors status lamp

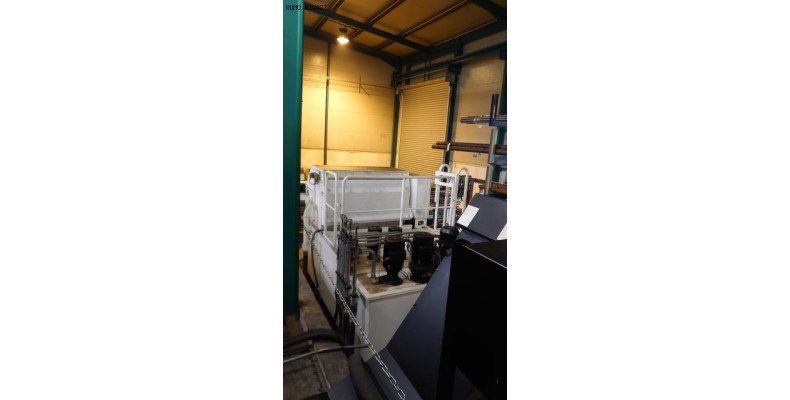

- Coolant tank
* with high-pressure pump
* Coolant through spindle

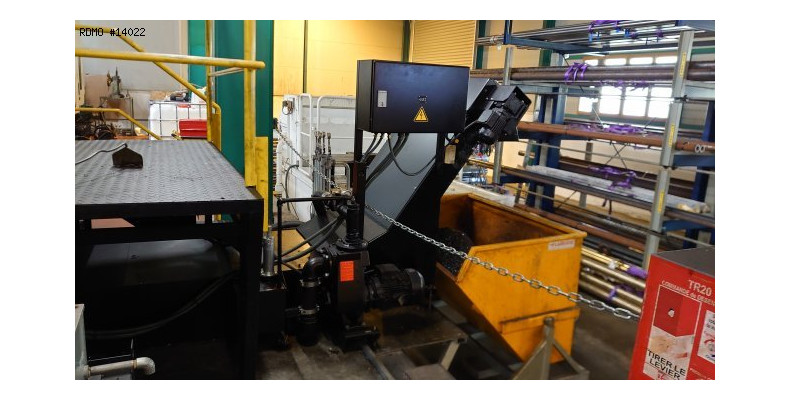

- Chips conveyor
- Workpiece probe : Renishaw
- Tool breakage detection
