Caratteristiche
- Number of axes : 4

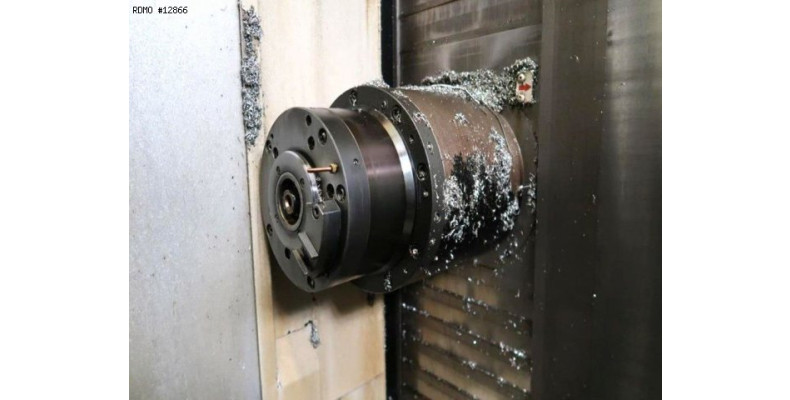

MILLING SPINDLE
- Tool holder type : HSK63
- Spindle power : 18,5 [kW]
- Spindle speeds : 14.000 [rpm]
- Number of spindle hours : 7.049 [h]
LINEAR AXES
- Travels on X/Y/Z axes : 560 x 560 x 630 [mm]
- Rapid traverses rates (X/Y/Z) : 50 [m/min]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0,001 [°]
- Rapid traverse rate : 44 [rpm]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 60

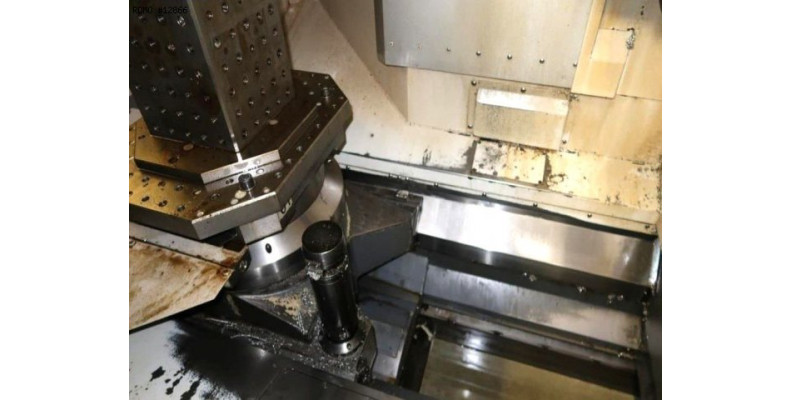

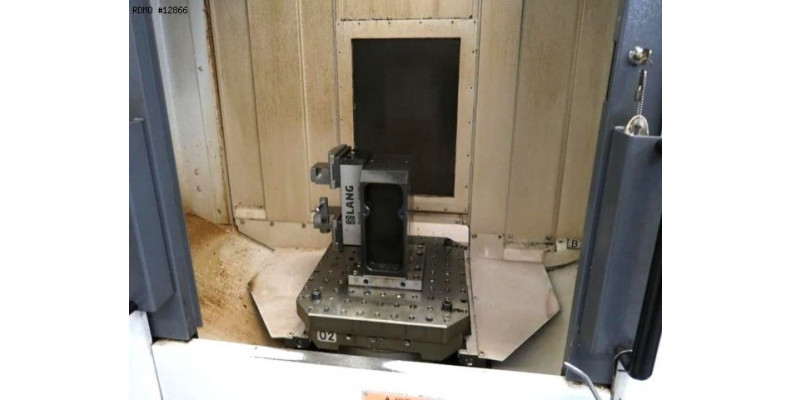

PALLET CHANGER
- Pallet changing device type : Rotopallet
- Pallet size : 400 x 400 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 400 [kg]
- Distance table / spindle axis (min./max.) : 80 - 640 [mm]
- Distance table center / spindle nose (min./max.) : 100 - 730 [mm]
- Maximum workpiece diameter : 630 [mm]
- Maximum workpiece height : 900 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 36 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.914 x 2.360 [mm]
- Machine height : 2.711 [mm]
- Machine weight : 9.950 [kg]
MACHINE HOURS
- Number of working hours : 9.563 [h]
Attrezzatura

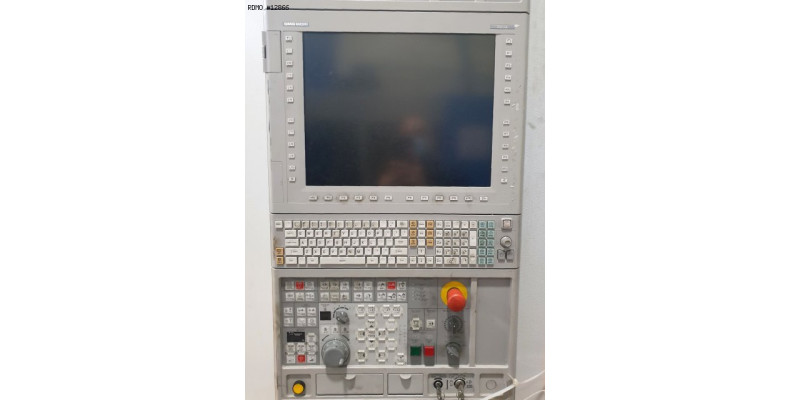

- CNC : Fanuc 31i-A
- Interface : RS232 / USB / RJ45
- Rigid tapping
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 70 [bars]
* Coolant through spindle

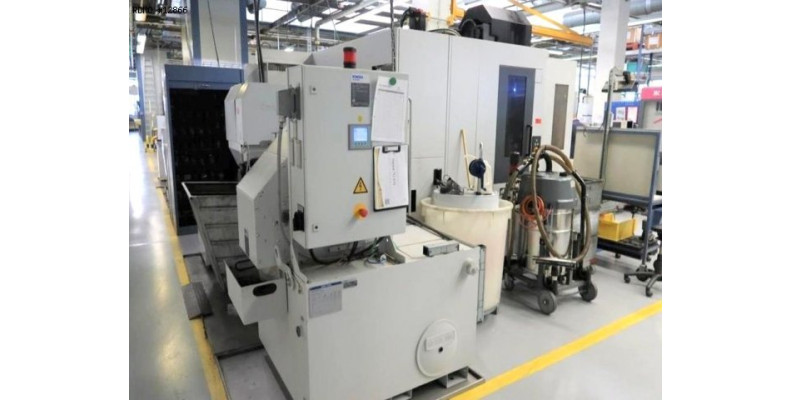

* with paper filtering unit : KNOLL KF 110/700 (2014)
* With cabin washing
- Spindle cooling unit

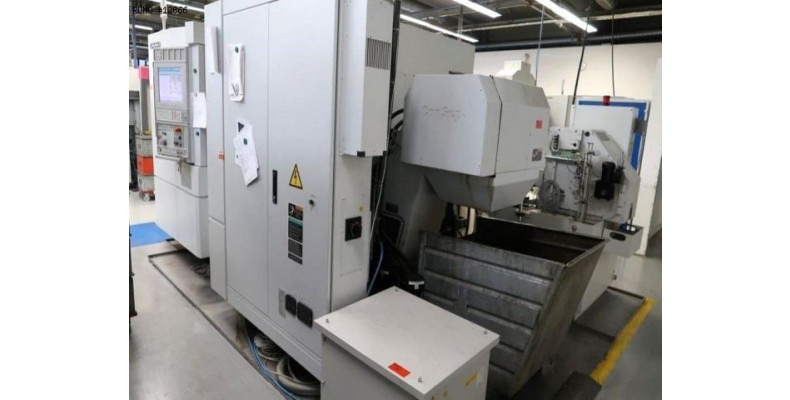

- Chips conveyor : Consep
- Tool probe

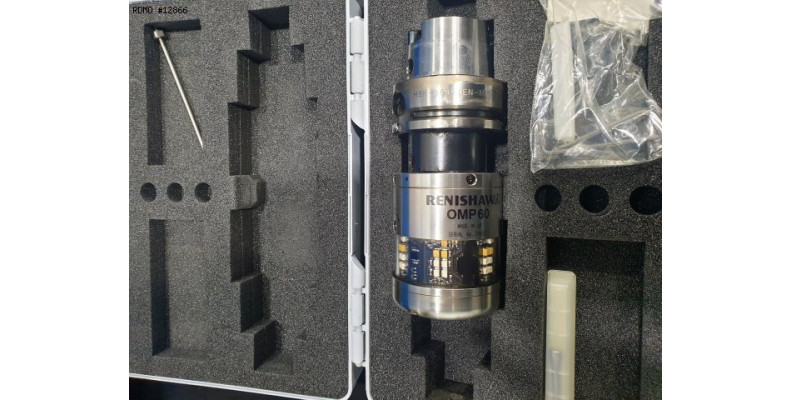

- Workpiece probe : Renishaw OMP 60
- Electric transformer : 400 / 200 [V]
