Marca: Tornos
Modello: DECO 2000/20
Anno: 1999
Nr Serie: T63086
Marca: Tornos
Modello: DECO 2000/20
Anno: 1999
Nr Serie: T63086

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 25,4 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 10.000 [rpm]
- C axis indexing precision : 0,1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0,1 [°]
- Number of guide bush holders : 2
GUIDE BUSH HOLDER 1
- Number of positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 4
- Live tools speed : 8.000 [rpm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 6.000 [rpm]
SECONDARY OPERATION
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 8.000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 13 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.270 x 1.650 [mm]
- Machine height : 2.200 [mm]
- Machine weight : 3.500 [kg]
MACHINE HOURS
- Number of working hours : 40.236 [h]
Attrezzatura
- CNC : Fanuc PNC DECO
- Rotating tool motor on : S2, S3, S5 vertical + horizontal
- Rotating guide bush
- Parts catcher

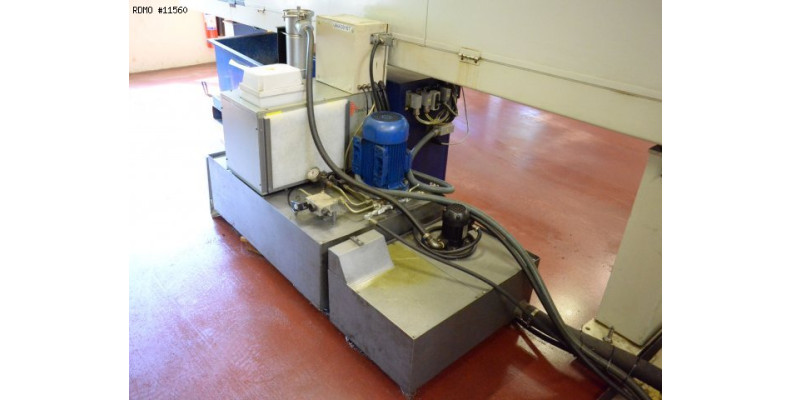

- Coolant tank
* with cooling unit for coolant : TERMOGAMMA
* with high-pressure pump
- Number of rotary tool holders : 4
- Number of turning tool holders : 7
- Number of fixed drillers : 4
Specifiche tecniche per il download

Descrizione

This machine worked only with straight oil Macchine utensili per la vendita
