Marca: Kitamura
Modello: HX 300 IF
Anno: 2007
Nr Serie: 40996
Marca: Kitamura
Modello: HX 300 IF
Anno: 2007
Nr Serie: 40996

Caratteristiche & Attrezzatura

Caratteristiche

- Number of axes : 4
MILLING SPINDLE
- Tool holder type : BT40
- Spindle speeds : 20000 [rpm]
- Gearbox
LINEAR AXES
- Travels on X/Y/Z axes : 510/510/490 [mm]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 40
PALLET CHANGER
- Pallet changing device type : Rotopallet
- Pallet size : 300X300 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 250 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 45 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 4000X3039 [mm]
- Machine height : 2700 [mm]
- Machine weight : 10000 [kg]
MACHINE HOURS
- Number of working hours : 20834 [h]
Attrezzatura

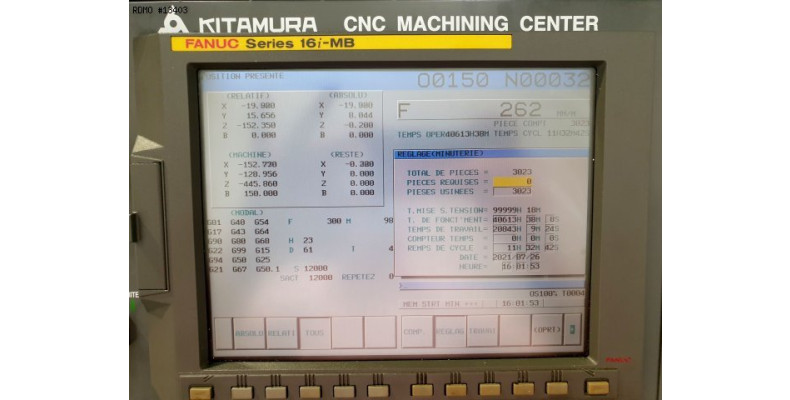

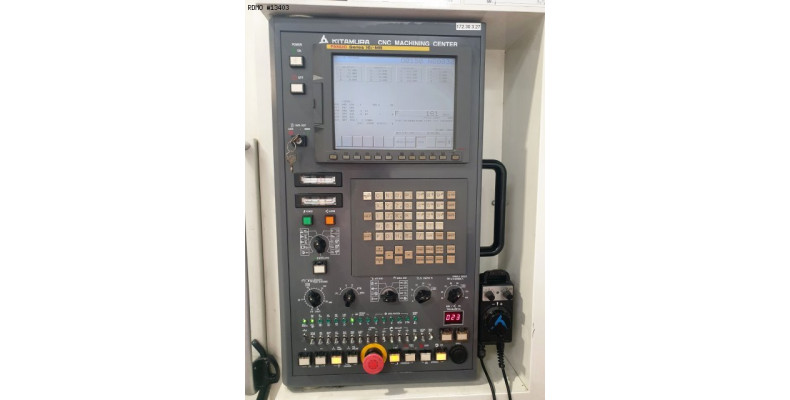

- CNC : Fanuc 16 iMB
- Interface : Ethernet / RS232 / USB / PCMCIA
- Electronic handwheel
- Rigid tapping
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 15 [bars]
* Coolant through spindle
* With cabin washing
- Chips conveyor
- Spindle cooling unit
- Tool probe
- Electric transformer
