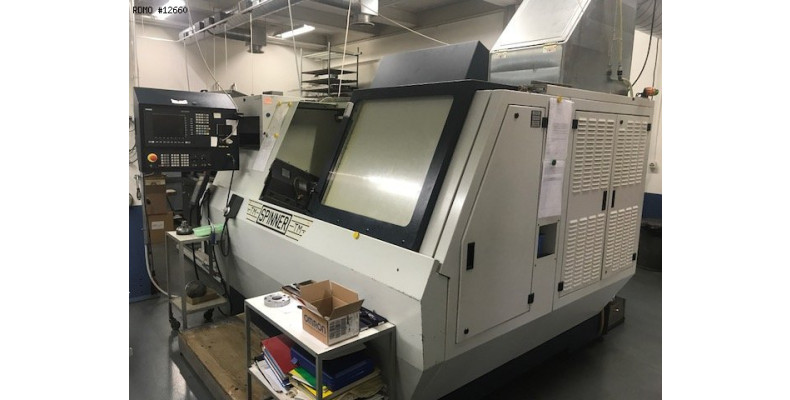

Spinner TM 7 assi

- Number of spindles : 2
- Number of axes : 7
- Number of turrets : 1
MAIN SPINDLE
- Spindle power : 15 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0.001 [°]
- Z stroke : 475 [mm]
COUNTER-SPINDLE
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0.001 [°]
- Z stroke : 475 [mm]

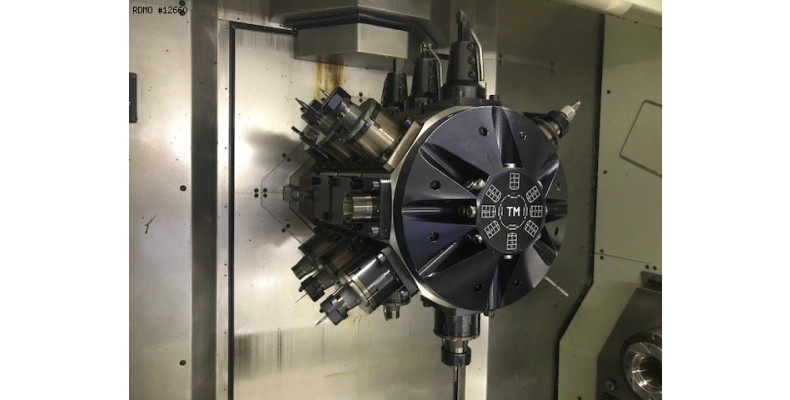

TURRET
- Number of positions : 24
- Number of motorized positions : 18
- X stroke : 400 [mm]
- Y stroke : 300 [mm]
- Live tools speed : 9000 [rpm]
- Live tools power : 2.3 [kW]
- B Axis stroke : 360 [°]
- Indexing precision : 0.001 [°]
POWER SUPPLY
- Total installed power : 35 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2900 x 3300 [mm]
- Machine height : 2300 [mm]
- Machine weight : 7500 [kg]
MACHINE HOURS
- Number of hours under power : 29731 [h]
- Number of working hours : 4500 [h]

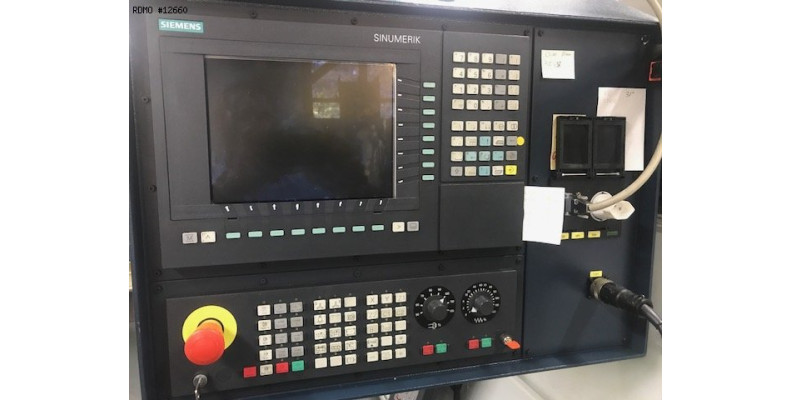

- CNC : Siemens 840D
- Electronic handwheel
- Coolant tank

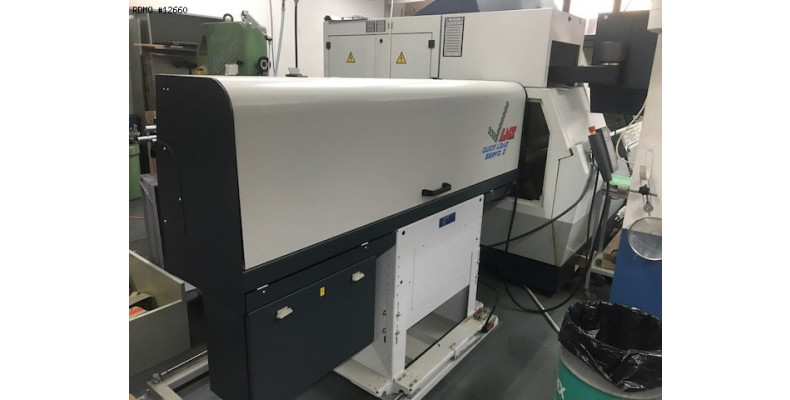

- Bar loader : LNS quick load servo II
- Number of turning tool holders : 15
- Number of fixed tool holders : 14
- Collet chuck
