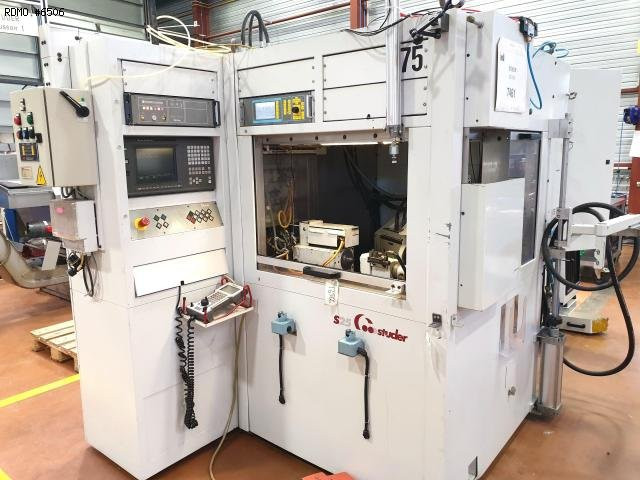

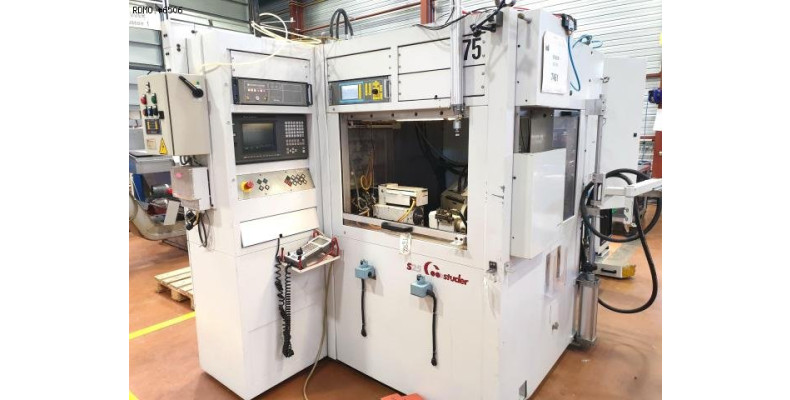

Studer S25 CNC 2 assi

Rettifica / affilatura / lappatura / sbavatura / levigatura Rettificatrice cilindrica a cnc

Specifiche tecniche per il download

Marca: Studer

Modello: S25 CNC

Anno: 1999

Nr Serie: 025-0096-90-018

Richieda un prezzo

Caratteristiche

- distance between centers : 200 [mm]
- centers height : 100 [mm]
- strokes (X/Z) : 130 / 170 [mm]

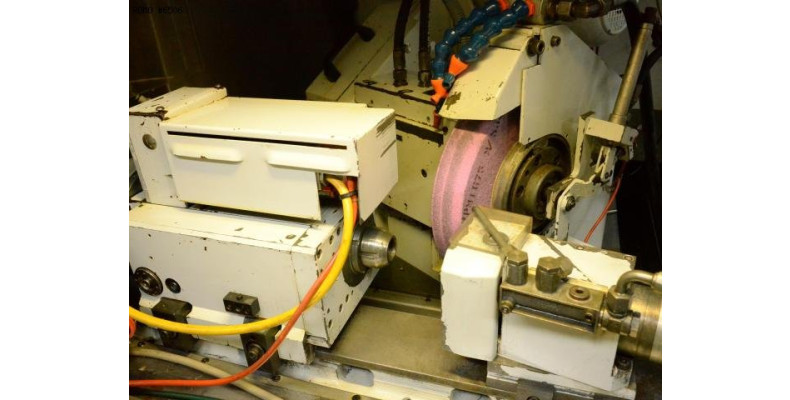

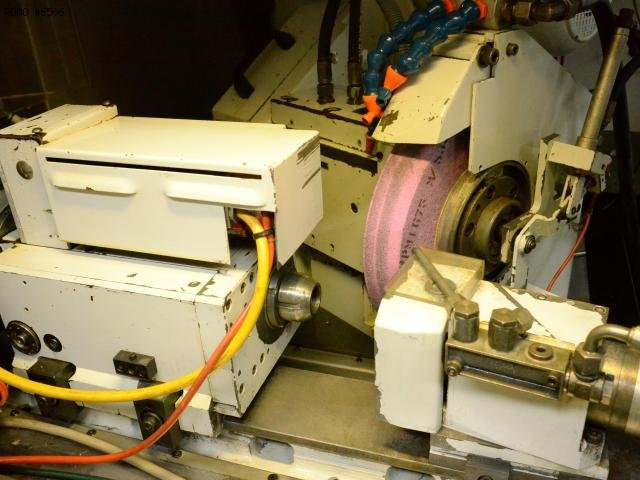

WHEELHEAD
- grinding wheels dimensions : 400 x 63 x 127 [mm]
- peripheral speed : 45 [m/sec]
- power : 3 [kW]
- positioned at : 30 [°]
WORKPIECEHEAD
- type of cone: MT4
- speeds : 600 - 3000 [rpm]
- power : 0,5 [kW]
- C axis indexing precision : +/- 0,5 [°]
TAILSTOCK
- type of cone: CM2
- quill stroke : 30[mm]
ELECTRICAL SUPPLY
- voltage : 400 [V]
- frequency : 50 [Hz]
- installed power : 19 [kVA]
DIMENSIONS
- floor space : 1760 x 2180 [mm]
- height : 2630 [mm]
- weight : 4.000 [kg]
HOURS
- under power : 46.943 [h]
- working hours : 21.529 [h]

Attrezzatura

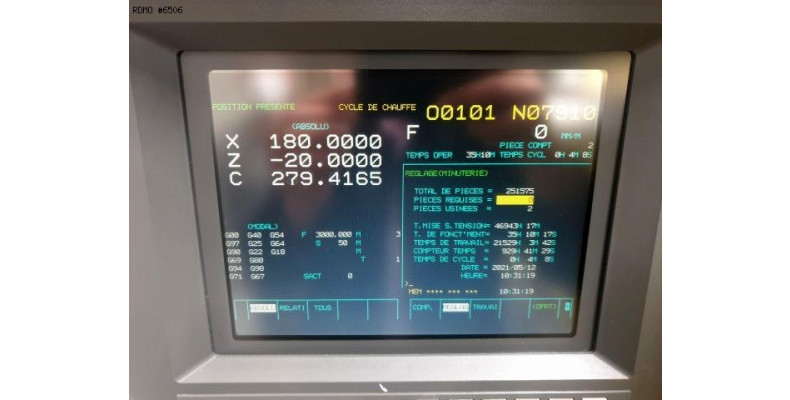

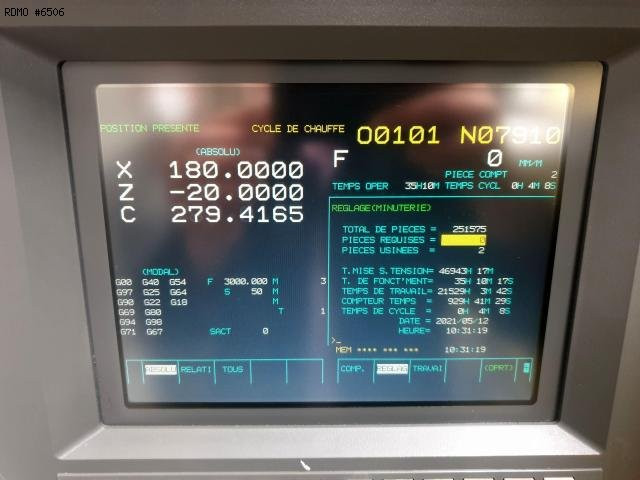

- CNC FANUC 16TB
- soft options : Studer Release B, Pictogramming
- interface : RS232C

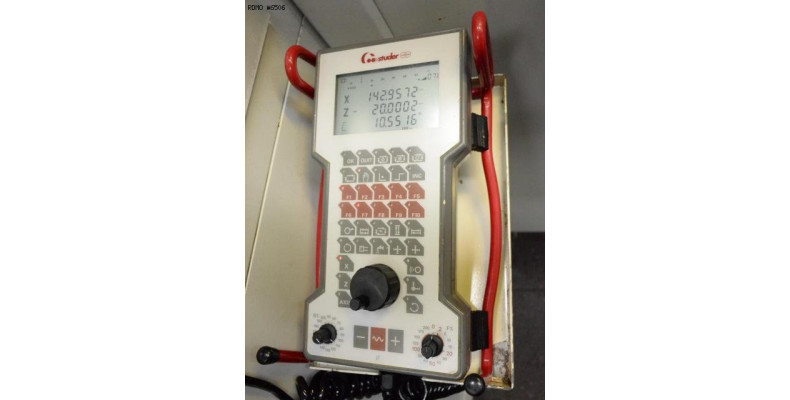

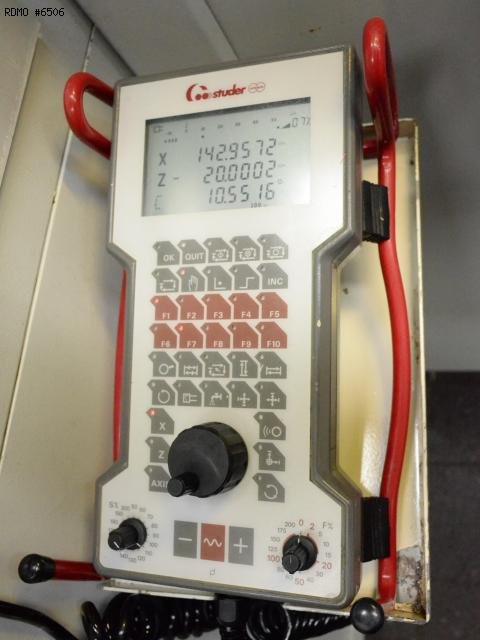

- electronic deported handwheel
- direct measuring rules on axes X/Z
- tailstock with fine concentricity adjustment
- tailstock pinole hydraulic recoil

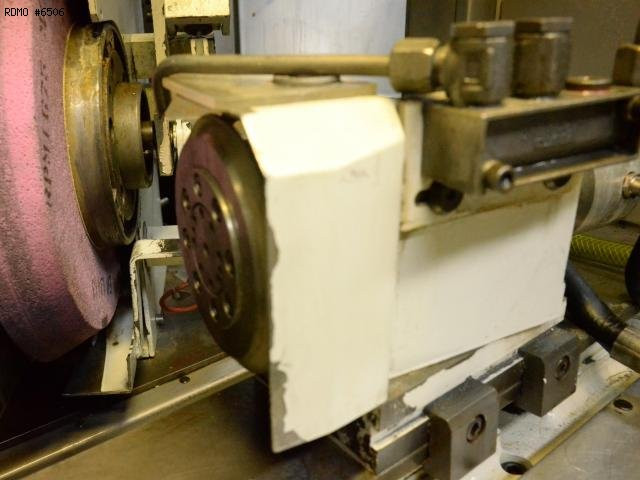

- swiveling dressing wheel upon table : FISCHER
AES-72x230/3

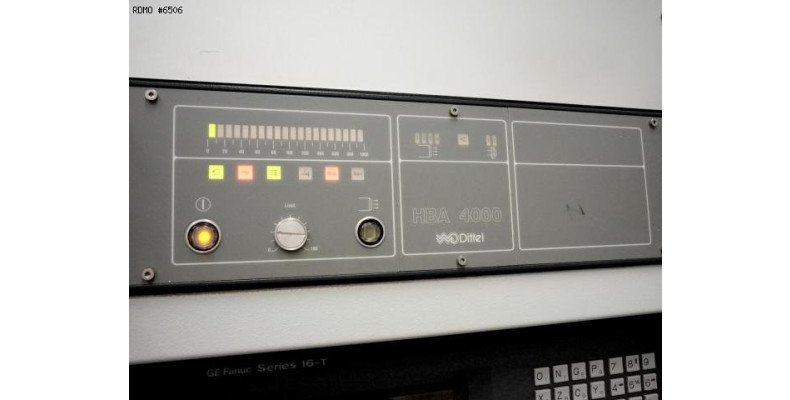

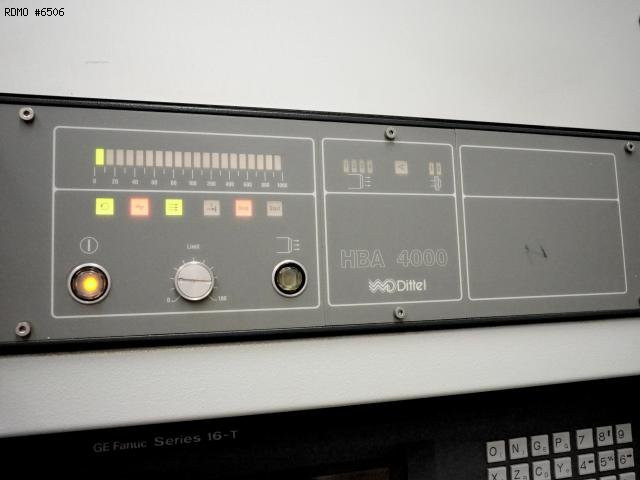

- dynamic wheel balancing device : DITTEL HBA 4000

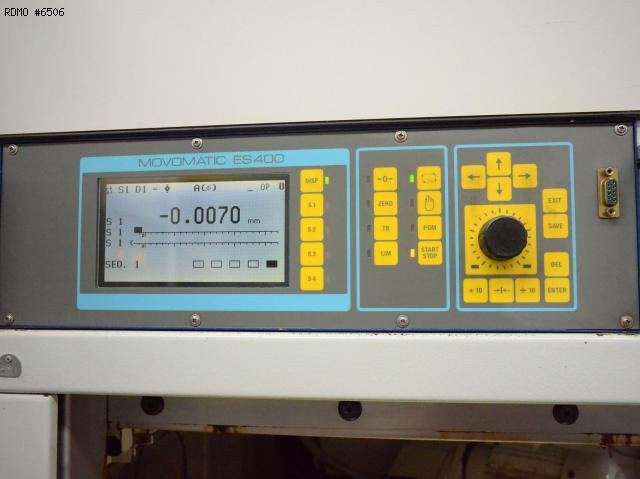

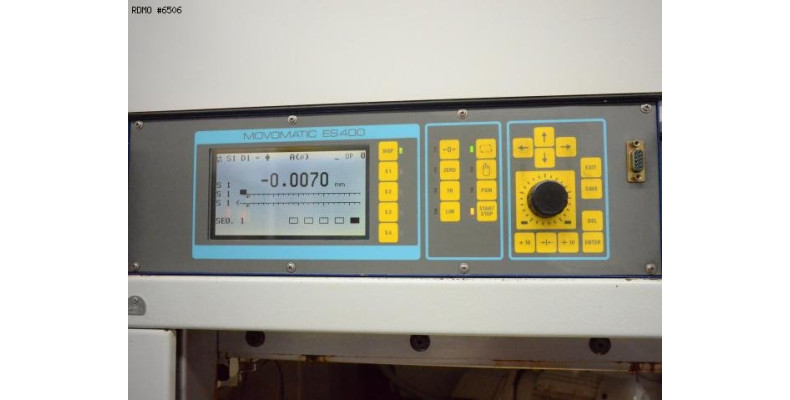

- prepared for diameter sensor : MOVOMATIC ES400
- prepared for parts loading/unloading robot :
FELSOMAT
- automatic front door
- prepared for cooling

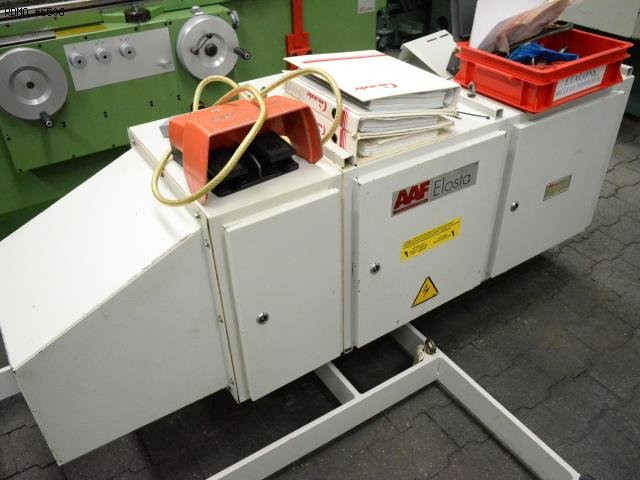

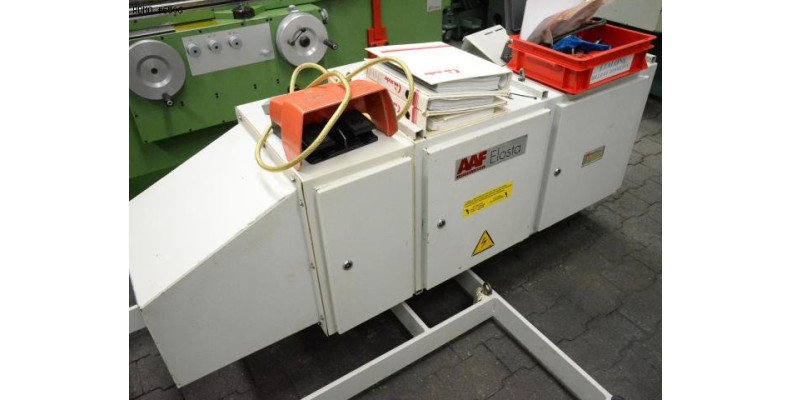

- electrostatic aspiration : ELOSTA BF2000
- pneumatic collets chuck
- 1 wheel-holder
- 1 grinding wheel
- support arm for zero gravity wheel change
- 1 balancing shaft
