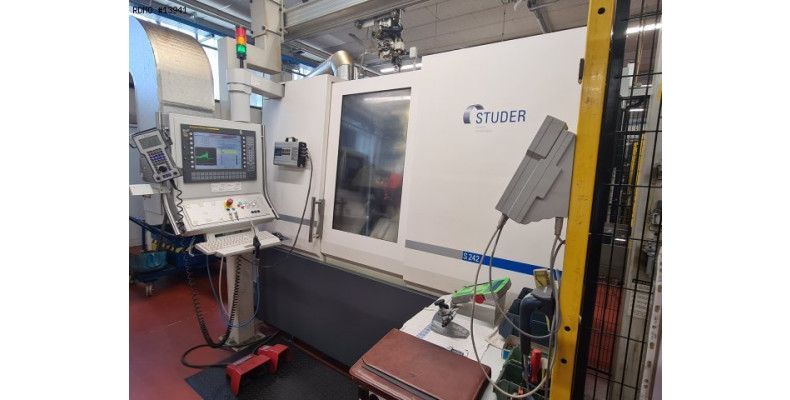

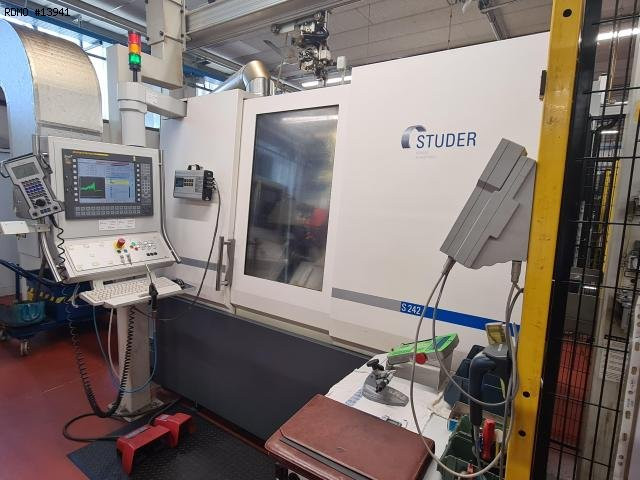

Studer S242

- Distance between centers : 400 [mm]
- Useful diameter : 180 [mm]
LINEAR AXES
- Travel X1 x X2 : 220 [mm]
- Travel Z :850 [mm]
- Resolution X x Z : 0,0001 [mm]

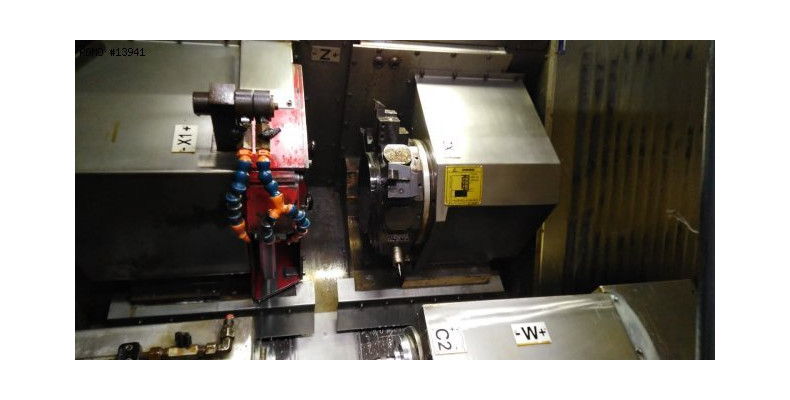

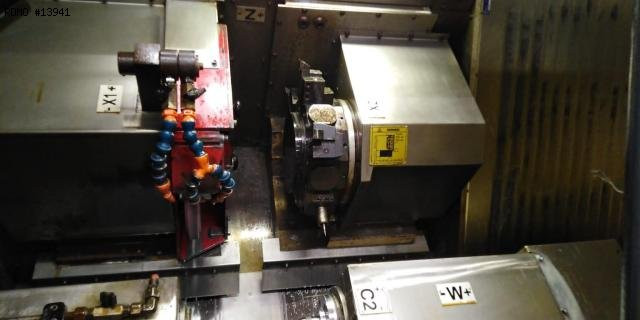

TURRET
- Number of fixed position : 12
- Tool type : VDI 30
GRINDING-WHEEL HOLDER HEADSTOCK
- Right external grinding (pos.1):
- Grinding wheel dimensions (Ø x width x boring) : 400 x 50 x 127 [mm]
- Training power :6.8 [kW]
PART-HOLDER HEADSTOCK
- Max rotation speed :7500 [Rpm]
- Rotation speed ( synchronous operation ) :1 - 5000 [tr/min]
- Taper type : CM4
- C axe :0.001 [°]
- Training power : 10.5 [kW]
TAILSTOCK
- Max rotation speed :7500 [Rpm]
- Rotation speed ( synchronous operation ) :1 - 5000 [tr/min]
- C axe :0.001 [°]
- Internal taper : MK4
- Micrometric adjustment : +/- 40 [microns]
- Training power : 10.5 [kW]
ELECTRICAL SUPPLY
- Power : 45 [KVA]
FLOOR SPACE
- Floor dimensions :2800 x 3960 [mm]
- Machine weight :7600 [kg]
MACHINE HOURS
- Hours under power : 57000 [h]

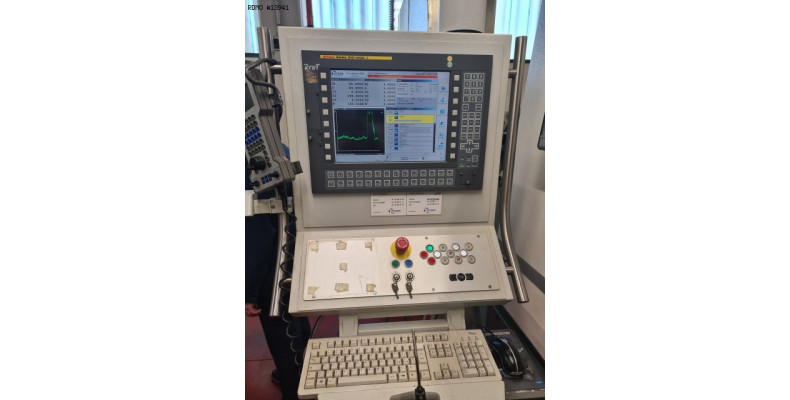

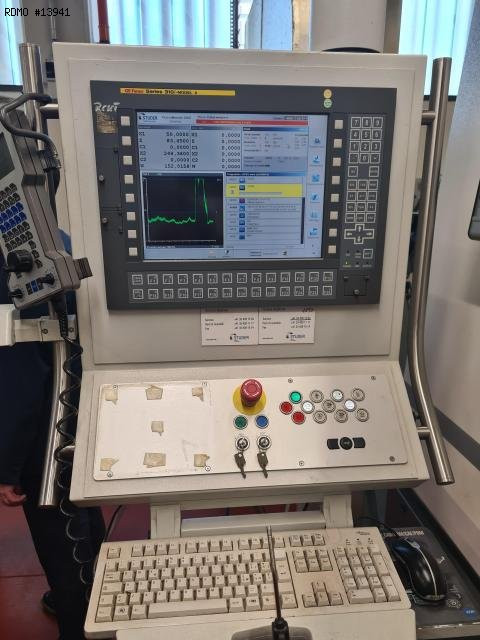

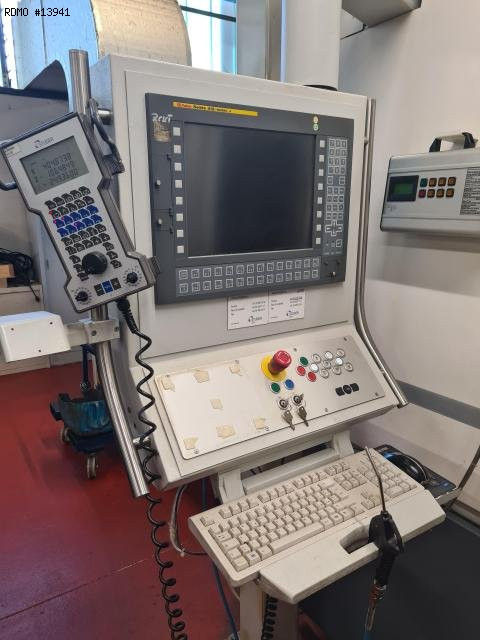

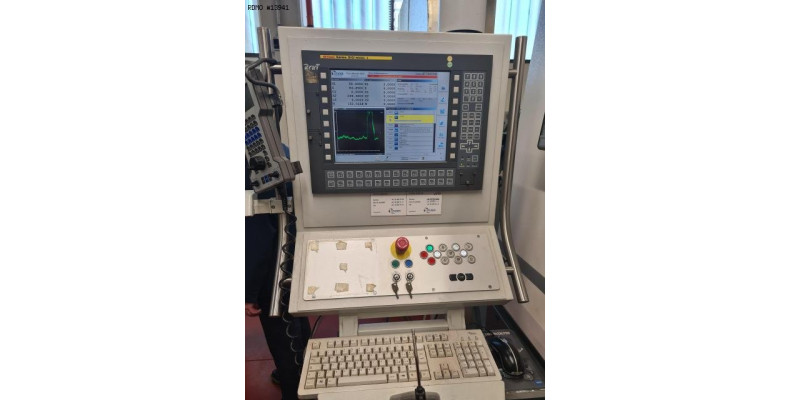

- CN FANUC 310i-modelA
- StuderWIN software
- Interface : RS232C

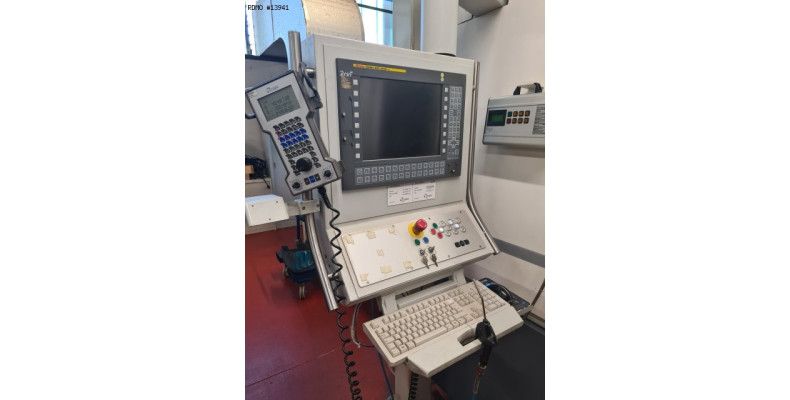

- Remote electronic handwheel
- Turret with length probe Renishaw LP2

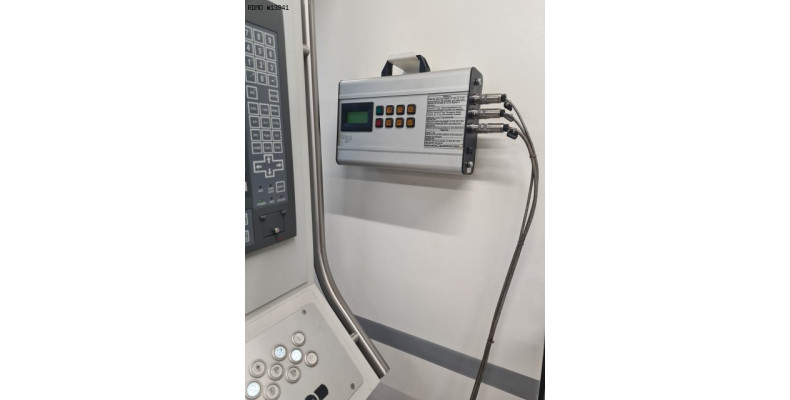

- Marposs probes for diameters ( multirange) and Z4 axes pour positionning
- Semiautomatic balancing MPM.3 BMT100 M.24

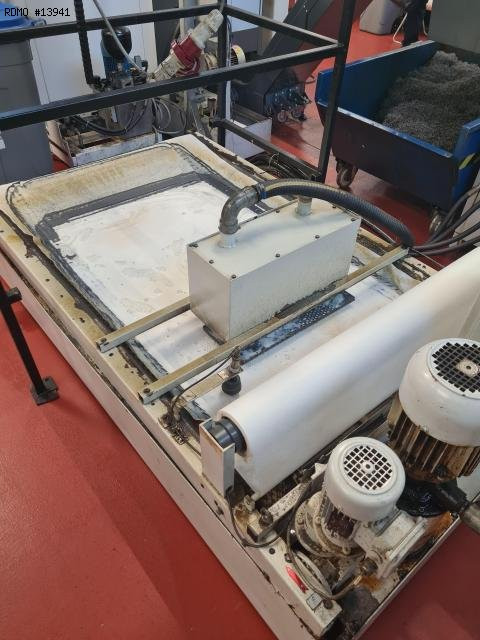

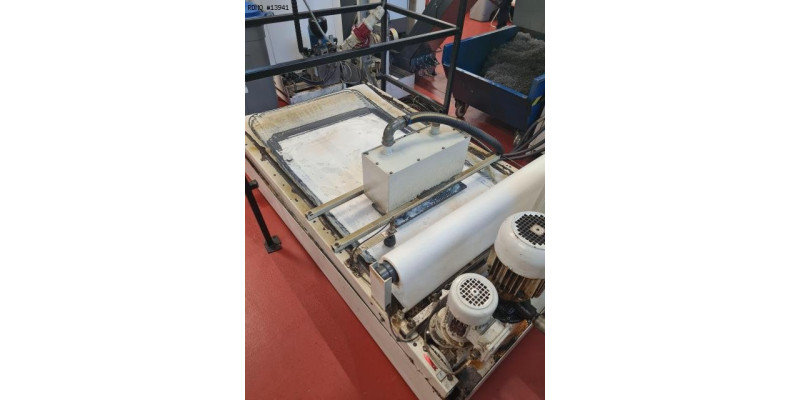

- WATER TANK 480 L
* with paper filtration and magnetic
* With magnetic pre-filter

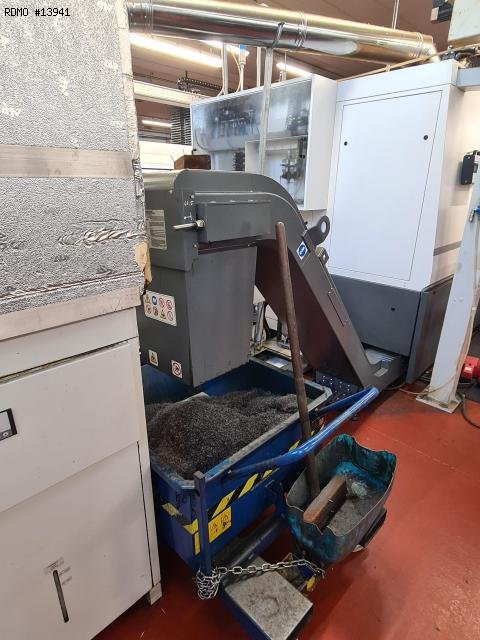

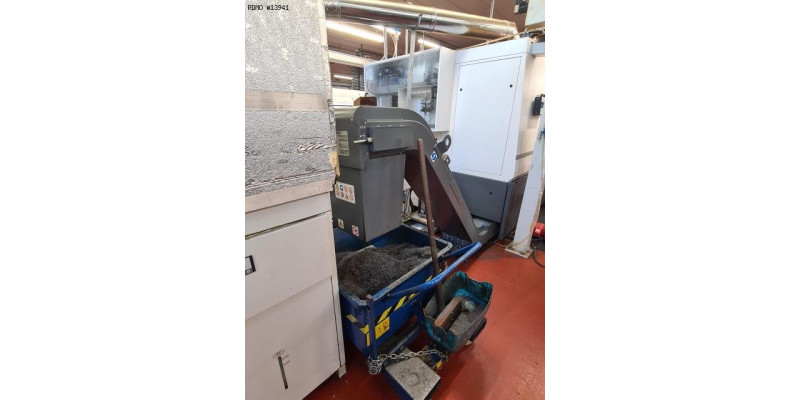

- chips conveyor

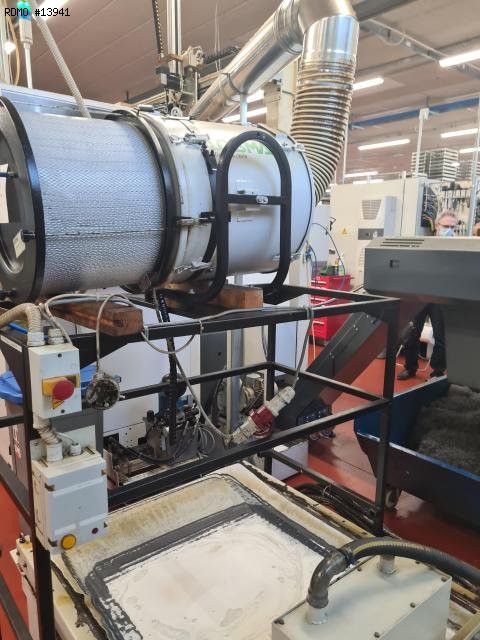

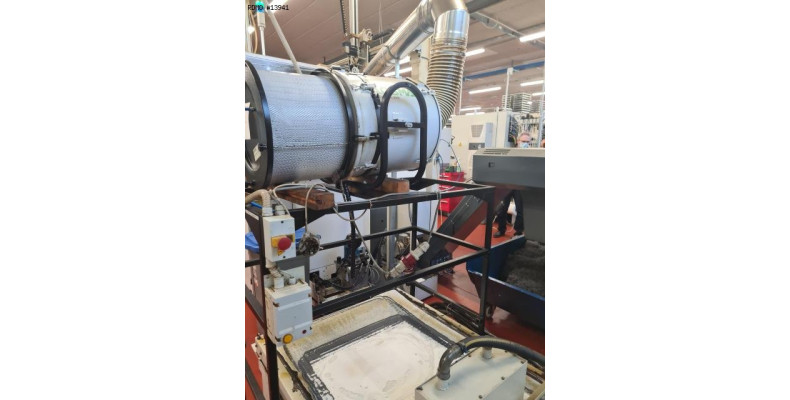

- Oil mist suction

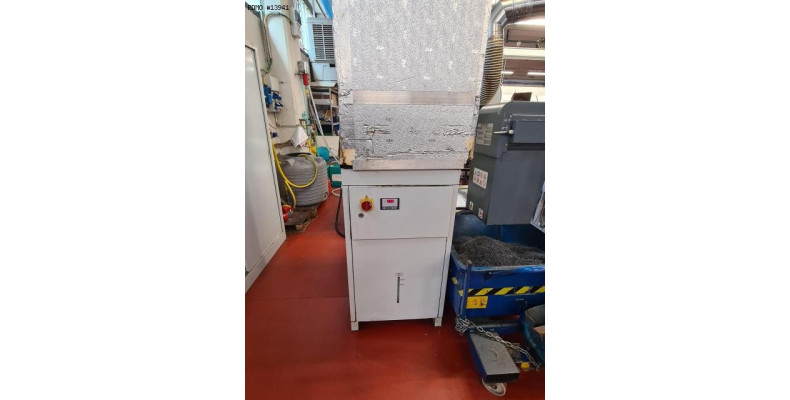

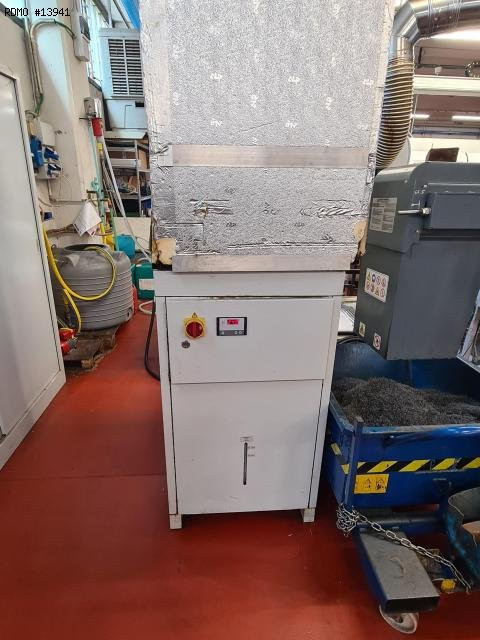

- Cooling unit for wheel motor

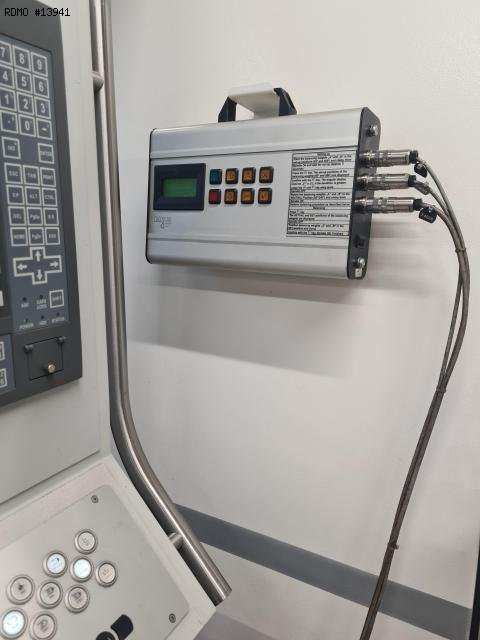

- Electronic contact detection Dittel AE6000
- Fixed diamond grinding device
- Electrical cabinet air conditioning
- Balancing shaft
