Caratteristiche

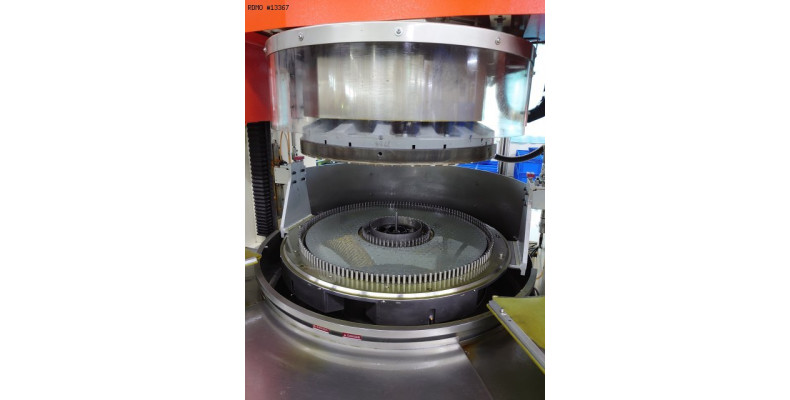

- Machining plates external diameter : 705 [mm]
- Number of satellites : 4-8
- Distance between the machining plates : < 390 [mm]
- Programmable work pressure for the parts to be machined : 0-2000 [daN]
- Stop precision : 0.1 [μm]
PROGRAMMABLE ROTATION SPEED FOR THE MACHINING
PLATES
- Plan honing and Micro-rectification : 0-250, 300, 400, 600
[Rmp]
- Central drive : 0-125, 220 [Rpm]
- Machining precision : 0.1 [μm]
FLOOR SPACE
- Floor dimensions : 3300 X 1970 [mm]
- Machine height : 2600 [mm]
- Machine weight : 8000 [kg]
Attrezzatura

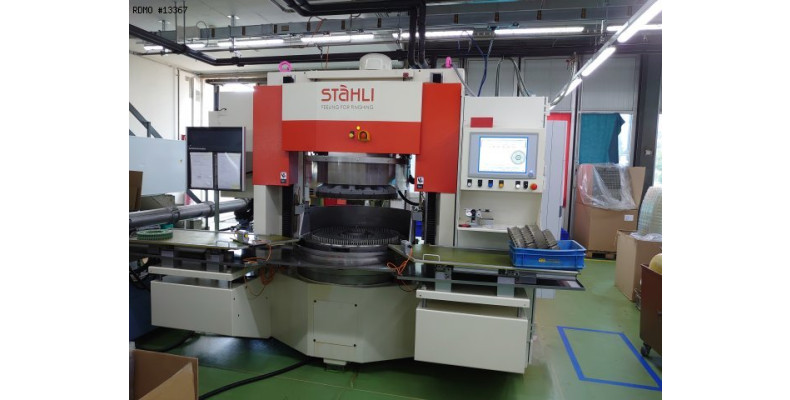

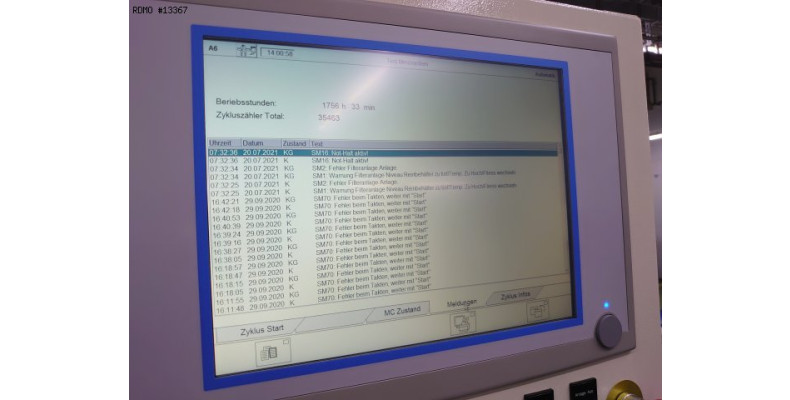

- CNC : STAEHLI
- CBN grinder typ SW20 (Diam:710[mm])

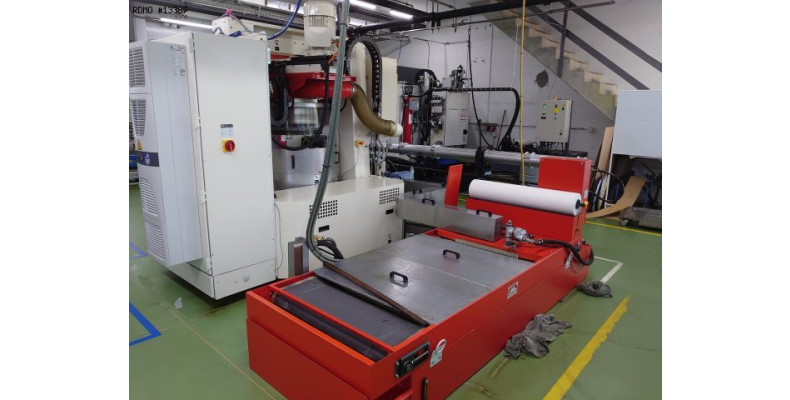

- Coolant tank with paper filtration

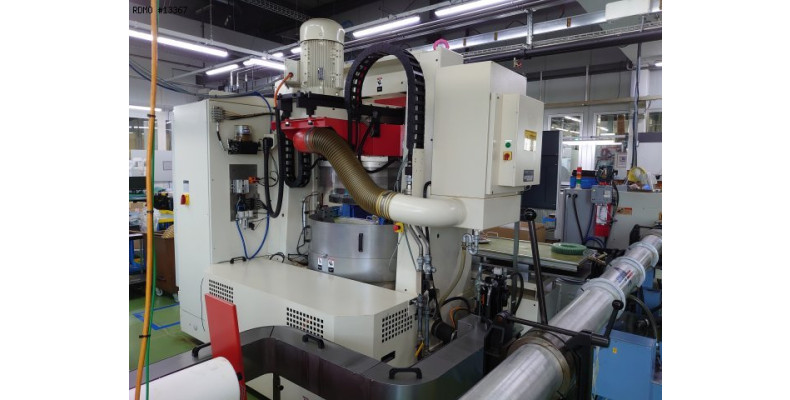

- Oil mist aspiration ELBARON
